RENNEN HIVE MINI CRANK

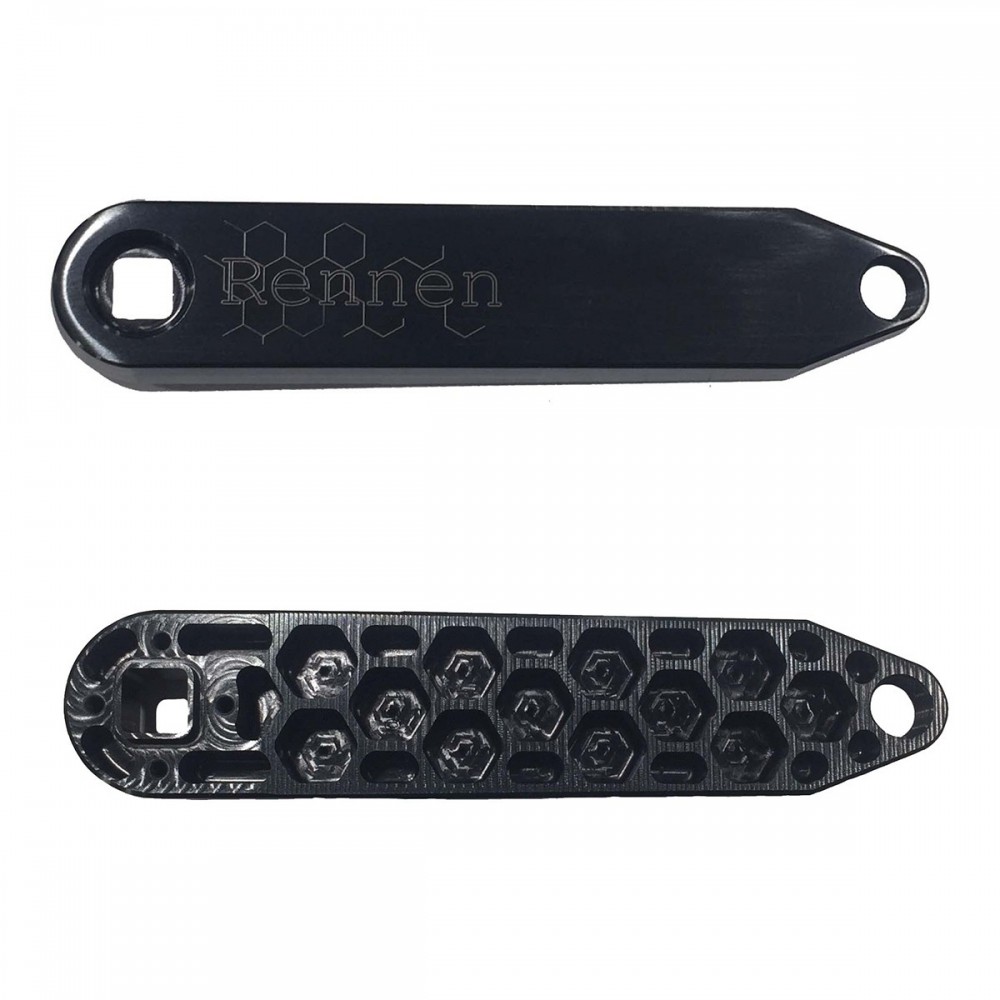

The Rennen Hive Mini Crank is the lightest square taper crank available. We have spent the last few months testing, optimizing and refining the design to create the most advanced mini crank on the market. Weight reduction is achieved through a honeycomb pocketing arrangement on the backside of each crank arm.

Specs:

Material- As with all Rennen products we only use 7075-T6 Aluminum across all size ranges.

Size Range- 29 sizes of cranks, largest in the market from 90mm through 160mm in 2.5mm increments.

Lightest- We beat all the other brands in this department. When trying to break those lightweight build barriers every gram counts and we have done the work for you to set new records. Check out the following size/weights.

Crank Size/Arm Weight/Ultralite Spider plus hardware
90mm/ 170g/206g .............92.5mm/ 171g/207g
95mm/ 176g/212g .............97.5mm/ 170g/206g
100mm/ 180g/216g .............102.5mm/ 180g/216g
105mm/ 183g/219g.............107.5mm/ 189g/225g
110mm/ 189g/225g .............112.5mm/ 196g/232g
115mm/ 197g/233g.............117.5mm/ 199g/235g
120mm/ 203g/239g.............122.5mm/ 212g/248g
125mm/ 208g/244g.............127.5mm/ 201g/237g
130mm/ 214g/250g .............132.5mm/ 215g/251g
135mm/ 214g/250g .............137.5mm/ 219g/255g
140mm/ 228g/264g .............142.5mm/ 225g/261g
145mm/ 235g/271g .............147.5mm/ 215g/251g
150mm/ 234g/270g .............152.5mm/ 237g/273g
155mm/ 235g/271g .............157.5mm/ 244g/280g
160mm/ 249g/285g

Tightest- The Hive Mini Crank design has an extremely small Q factor couple that with our Ultralite Bottom Bracket here and you can make sure your little racer has the best setup to help them win.

Q factor
95mm Spindle, Q~119mm
100mm Spindle, Q~124mm
105mm Spindle, Q~129mm
110mm Spindle, Q~134mm
115mm Spindle, Q~139mm

*Results of Qfactor may vary depending on spindle brand used

UltraLite Spider not included please check out it here

Available Colors- Black, Red, Blue, Gold (colors other than black will require 1-2 weeks to process, call to ask about availability)

100 lb Weight Limit - Due to the extreme weight reduction design we recommend that this product not be used for a child weighing greater than 100 lb.


Note: Rennen Products will be shipped to you separately from any other items ordered on BRGstore.com and will ship direct to you from from Rennen. Rennen products are made to order, due to the options of sizes and colors. Each order will be produced once ordered and will be shipped to you when ready, but the production time could be extended up to 2 weeks on some orders, depending on Rennen’s production schedule. All Rennen purchases are a final sale due to the method of order from BRGstore.com and are not eligible for return or refund.
