RENNEN ULTRALITE MINI BOTTOM BRACKET

RENNEN ULTRALITE MINI BOTTOM BRACKET View larger
RENNEN ULTRALITE MINI BOTTOM BRACKET

RENNEN ULTRALITE MINI BOTTOM BRACKET

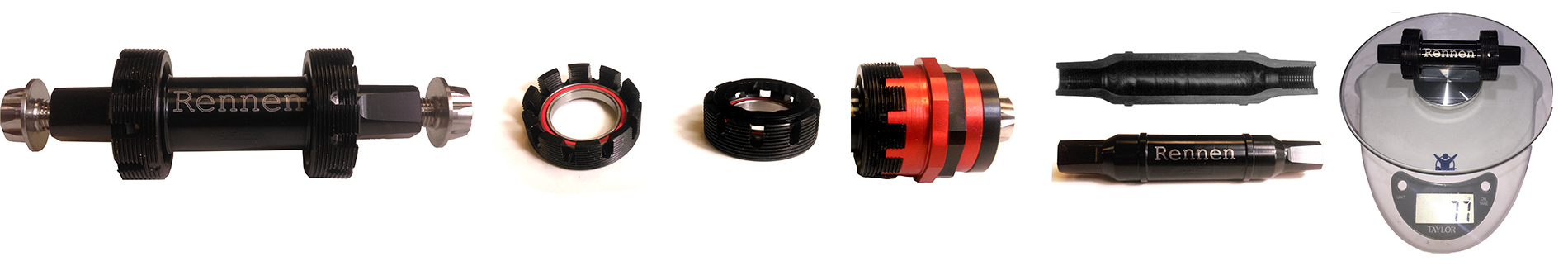

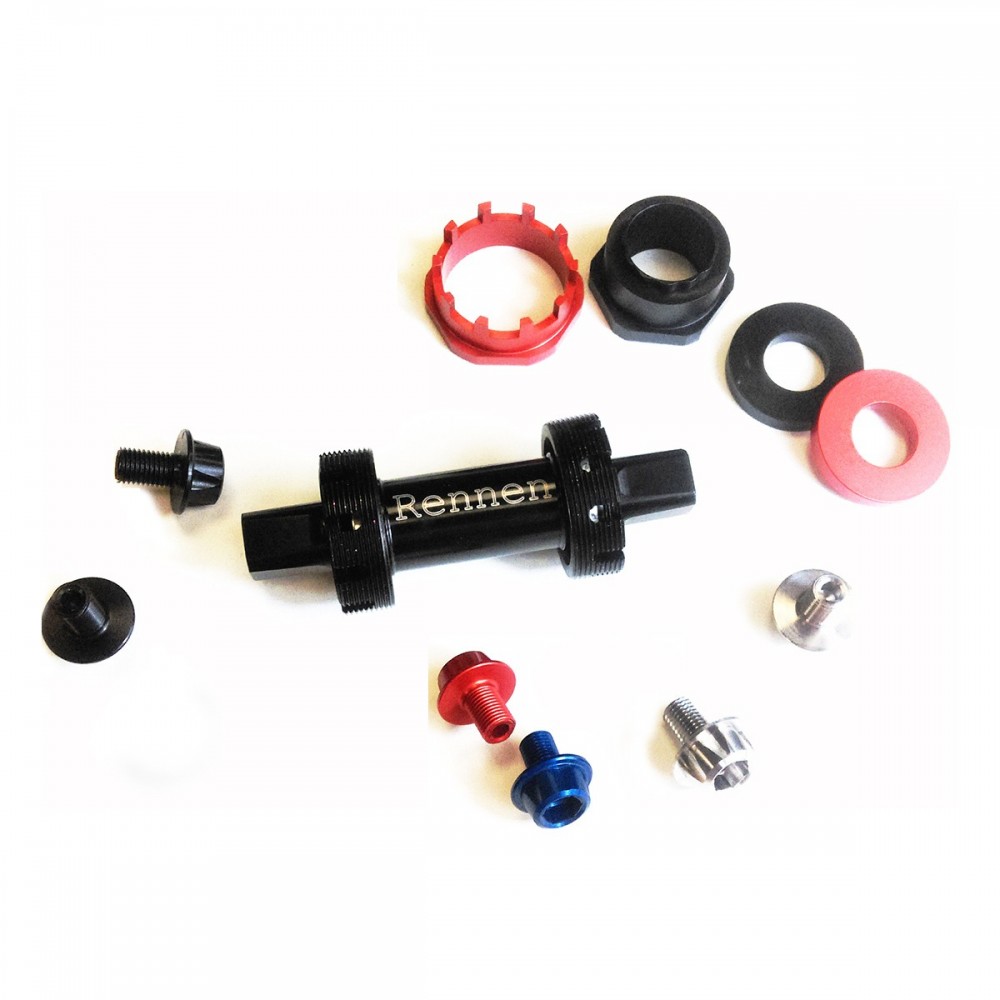

The Rennen Ultralite Mini Bottom Bracket is an engineering masterpiece. We set forth to develop the lightest and smallest bottom bracket in the world, but we did not stop there and made the bottom bracket adjustable.

The adjustable feature includes a bearing cup with a taper thread lockring/expanding shell design. This allows the user to precisely adjust their chainline. Once set we provide special tools to lock the cup in place and allow precise control over bearing pretension and chainline adjustments. Check out the installation video here.

Specs:

  • 95mm option weighs a mere 77g w/out screws (90g w/Ti, 80g w/7075). Spindles are available in 5mm increments up to 115mm.
  • The unique 20mm aluminum 7075-T6 spindle has been oversized to increase strength while keeping the weight low.
  • The spindle features M8x1mm stainless steel helicoil threads to ensure confidence in its strength and holding torque capability.
  • The Rennen Ultralite Mini Bottom Bracket uses Enduro ABEC 5 Silicon Nitride Ceramic bearings. Enduro is the leader in high performance bicycle bearings. When designing the best mini bottom bracket it only makes sense to use the best bearings.
  • Titanium spindle bolts come standard but the serious Factory Dad can upgrade to an Aluminum 7075-T6 bolt for maximum weight savings and bling factor.

80 lb Weight Limit - Due to the extreme weight reduction design we recommend that this product not be used for a child weighing greater than 80 lb.

Sold with 7075 bolts.


Note: Rennen Products will be shipped to you separately from any other items ordered on BRGstore.com and will ship direct to you from from Rennen. Rennen products are made to order, due to the options of sizes and colors. Each order will be produced once ordered and will be shipped to you when ready, but the production time could be extended up to 2 weeks on some orders, depending on Rennen’s production schedule. All Rennen purchases are a final sale due to the method of order from BRGstore.com and are not eligible for return or refund.

$169.99


Availability: In stock

Availability: Out of stock




- Shipped by -


Free Shipping all continental US orders over $150

Shipping in 1-5 business days (USA)

Satisfied or refunded

Secure Payment
Credit cards and Paypal
