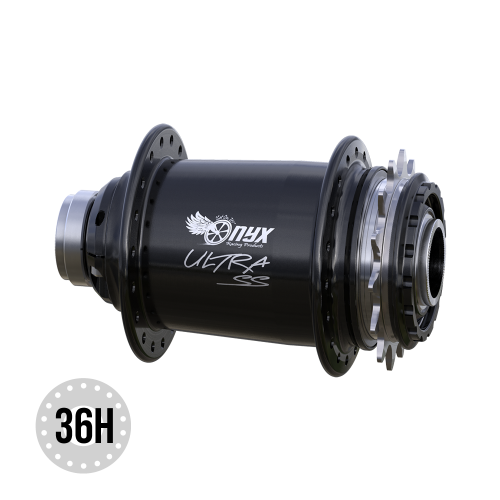

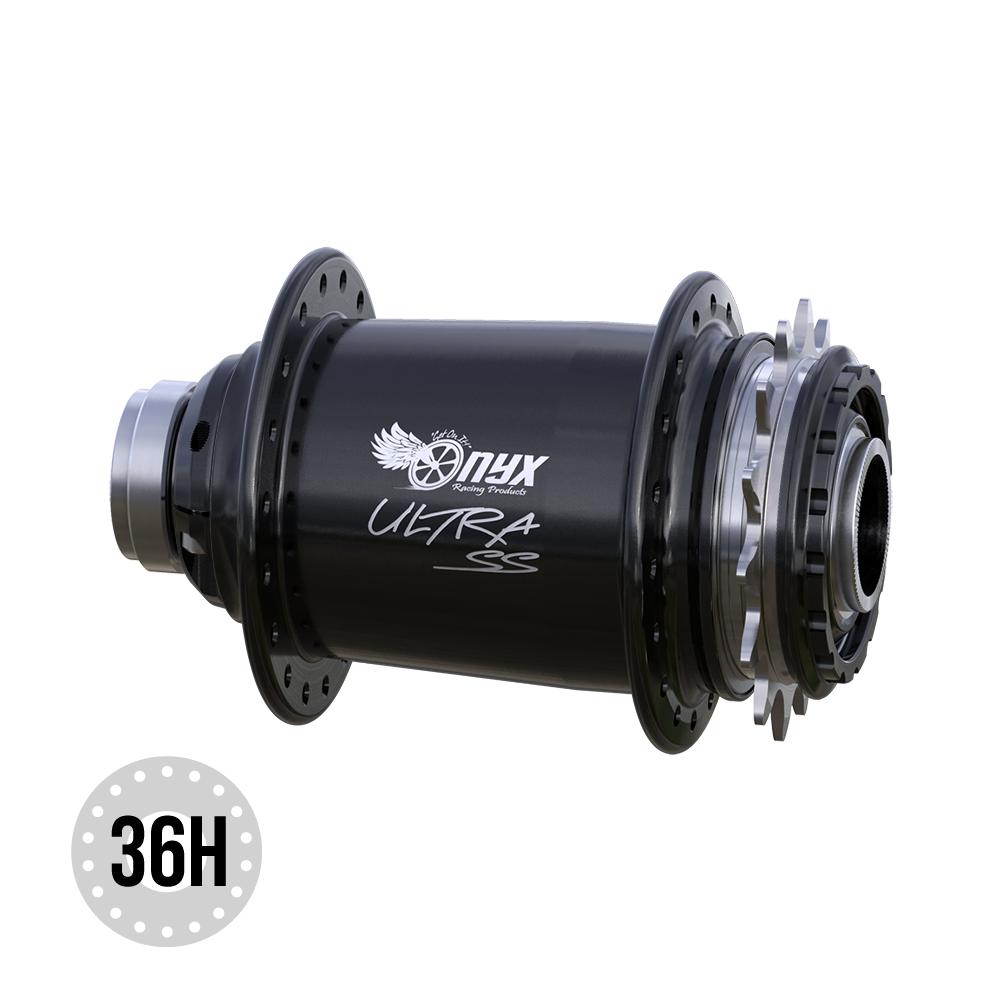

ONYX ULTRA SS 110/20MM REAR HUB CUSTOM

Onyx Racing Products: the top of the range of BMX Racing hubs.
Onyx hubs transfer power from your pedals to your rear bike wheel instantly for faster acceleration and more control.

  • Instant engagement, silent coasting
  • CNC machined aluminum 7075 body, reinforced
  • Small flanges
  • Hybrid-Ceramic bearings
  • For 20mm Axle
  • Drilling: 36 spokes
  • Weight: 564g

Design the hub of your dreams with our configurator.
Choose from all the options to build the exact hub for your specific needs.

All ONYX orders are custom, and made to order, and are final and non returnable items, so choose your options carefully and double check your build! ONYX Hub orders will shipped direct to you from ONYX, once complete, if you are ordering in the USA. If you are ordering and shipping to outside of the USA, the hubs will ship to BRG in California first and then sent to you with the rest of your order.

Please note, all orders from ONYX are currently on a delay, due to a backlog of the customer builds for all orders and will take up to 10 weeks to complete. This is due to each order being built to your exact design and customization and is ONYX time delay to produce the items.. Hubs are currently taking up to 10 weeks while all other items and parts from ONYX are taking up to 8 weeks to produce before shipping.

SOLD WITHOUT COG!

ONYX ULTRA SS COG : $50

$480.00
Hubshell Color
Widgets Color
Spoke Count
ONYXULTRASS20MMCUSTOM
Quantity
In-Stock

Availability
Made to order

Payment method available

Manufactured by

ONYX

Shipped by

Shipped by ONYX RACING PRODUCTS

Note: This item will be shipped to you direct from the Manufacture listed, if you are located in the USA. This may take a few extra days to ship and will ship separately to you if you are ordering other items from different brands.

More Description

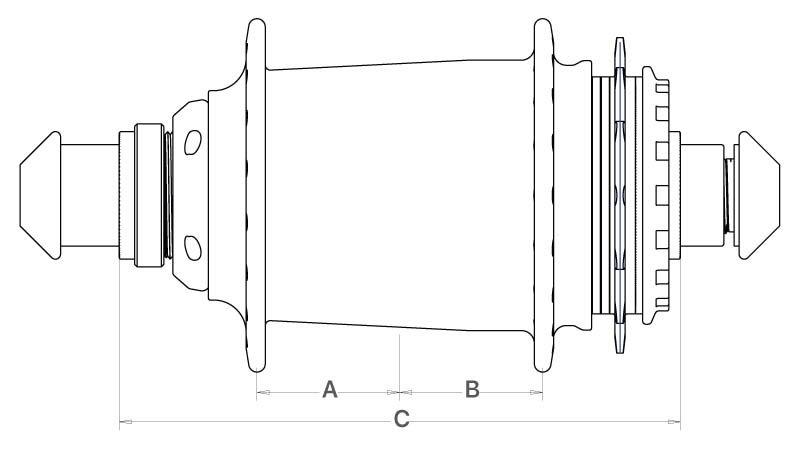

A - Hub Center To Flange Center, Non-Drive Side (mm) 28mm
B - Hub Center To Flange Center, Drive Side (mm) 28mm
C - Axle Width (mm) 110mm
Spoke Hole Circle Diameter, Drive Side (mm) 60mm
Spoke Hole Circle Diameter, Non-Drive Side (mm) 60mm
Spoke Hole Counts 36
Spoke Tension 120kgf Max


Product Details

ONYXULTRASS20MMCUSTOM

Data sheet

AXLE
20mm
Wheel Type
Rear
Spokes number
36
