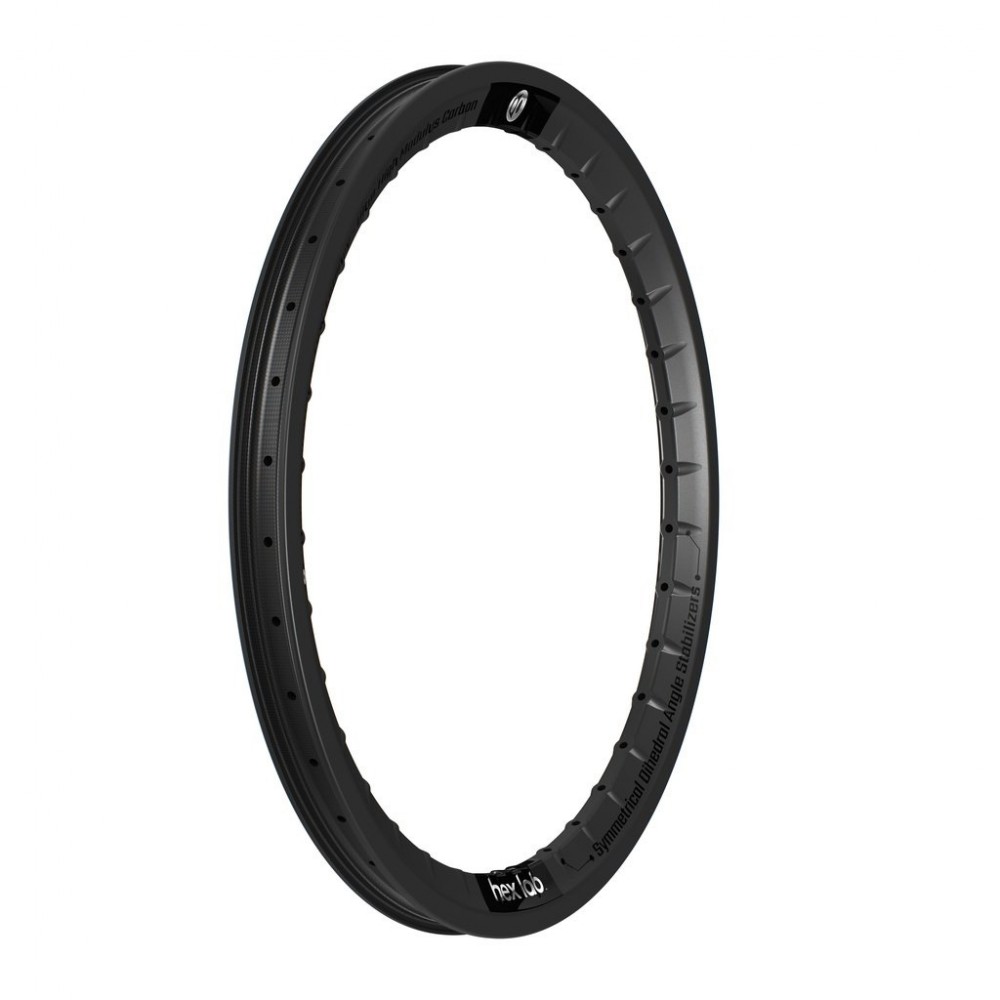

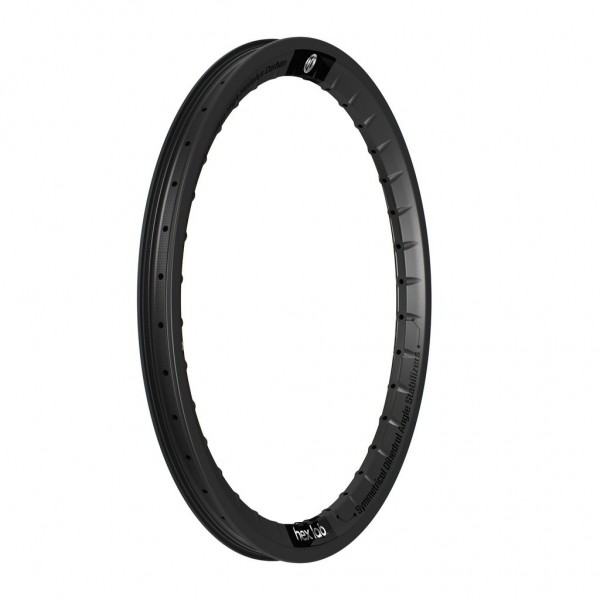

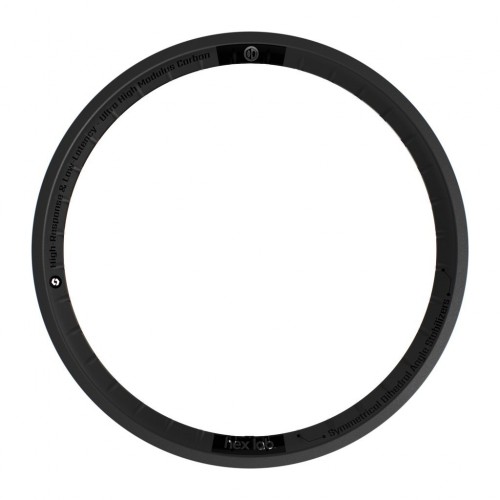

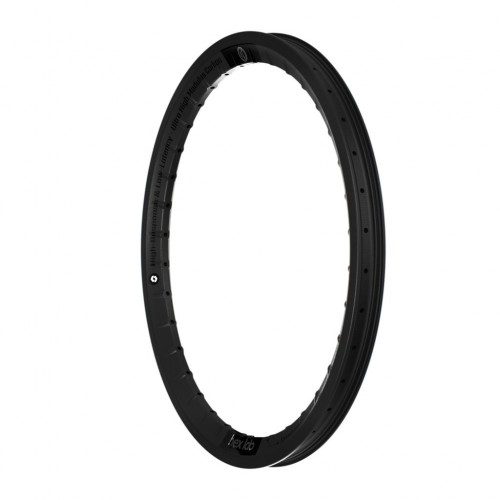

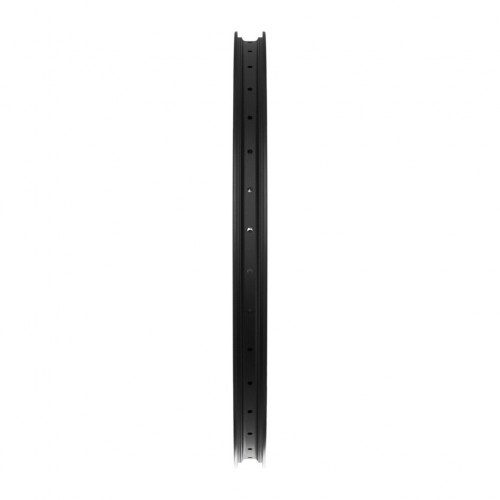

BOX HEX LAB CARBON 20" RIM 406MM 36H

All Hex Lab rims are engineered and crafted using our Oversized Technology. We’ve carefully studied the load paths from the bars through the stem, headset, fork, axle, hub to the spokes and into the rim for steering stiffness. The same approach was taken via the pedals through the cranks and other components on the way to the rear rim for pedaling stiffness. That extra stiffness will net you more power to the ground out back, and upfront, you'll feel in control. When combined with Box's other Oversized components, you'll experience heightened responsiveness and reduced latency. Due to their compatibility with tubeless and tubed configurations, these rims have a broad range of tire options and setup possibilities, making them perfect for any track.

Key Differences: The Hex Lab Carbon BMX Rims are the only rims in the Box line-up to be blessed with Oversized Technology. They are also the only model to use Ultra High Modulus Carbon Fiber (stiffer than other carbons variants). Take notice of the unique Symmetrical Dihedral Angle Stabilizers. Yes, it’s a mouthful but each of those words carries meaning. The sculpted bullet-shaped spoke beds are designed to bridge the angle between the rim's angled flanks and the vertical plane. With that, we achieve the stability, stiffness, and durability of a much broader rim profile without actually taking on most of the extra material.

FEATURES

  • Foil Stamped Chrome Logos
  • Brake (Rear) and Brake-Less (Front) Profiles
  • Machined Brake Track
  • Tubeless Ready
  • High-Response & Low Latency
  • Symmetrical Dihedral Angle Stabilizers
  • Ultra High Modulus Carbon Fiber
$399.99
Color
Size
Wheel
BX-RM21C20175R-BK
Quantity
In-Stock

Availability
In Stock

Payment method available

Manufactured by

BOX COMPONENTS

Shipped by

Shipped by BOX COMPONENTS

Note: This item will be shipped to you direct from the Manufacture listed, if you are located in the USA. This may take a few extra days to ship and will ship separately to you if you are ordering other items from different brands.

More Description

PLEASE NOTE:

Hex Lab Carbon BMX Rims with brake tracks require Carbon Brake Pad Inserts and CANNOT be used with standard Brake Pads made for aluminum Rims. Box Carbon BMX hoops are compatible with Box One Carbon Replacement Pads. Use of other brake pads will void warranty.

SPECIFICATION

  • Hole Drilling: 36 Hole
  • Internal Rim Width: 30mm
  • ERD: 369mm
  • Material: Ultra High Modulus Carbon Fiber

FAQ

Q: What is the recommended spoke tension for this rim?
A:We recommend a spoke tension of between 110kg and 115kg; remember, every rim is different.

Product Details

BX-RM21C20175R-BK

Data sheet

MATERIAL
Carbon
Wheel Type
Front or Rear brake disc
Spokes number
36
