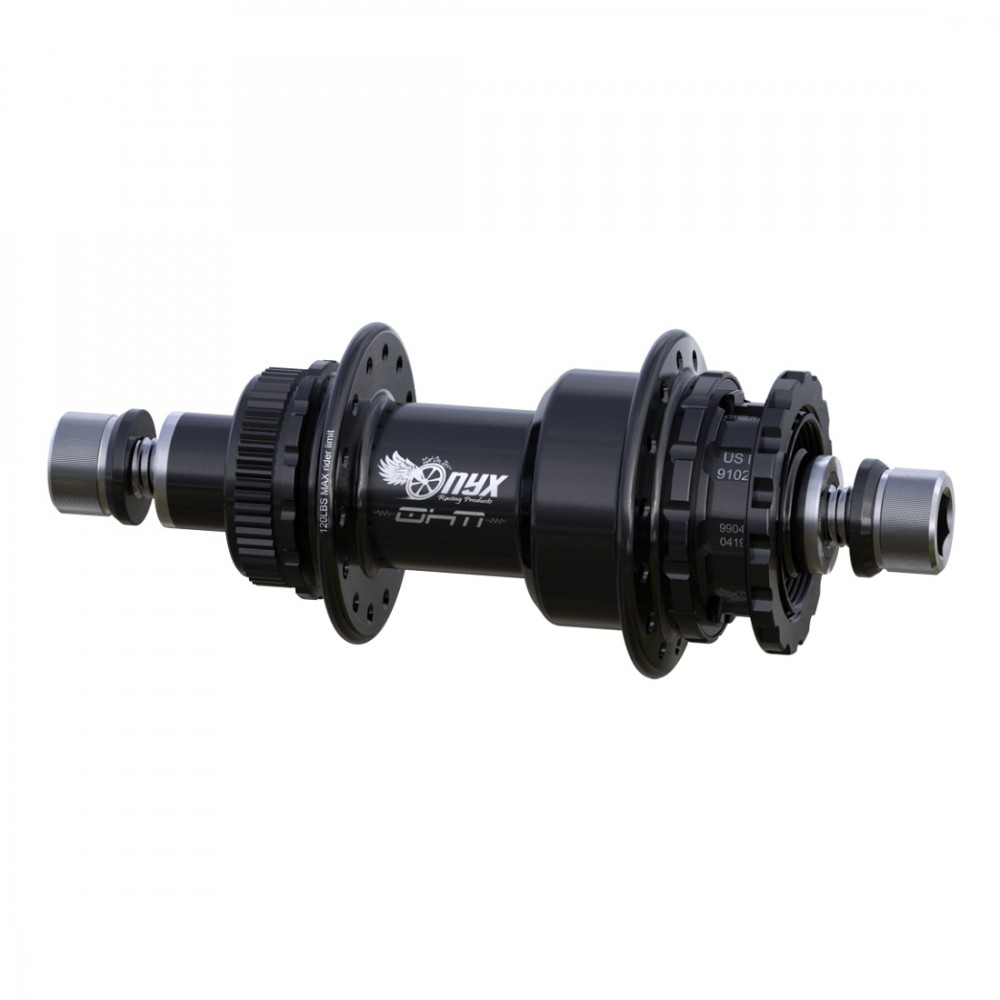

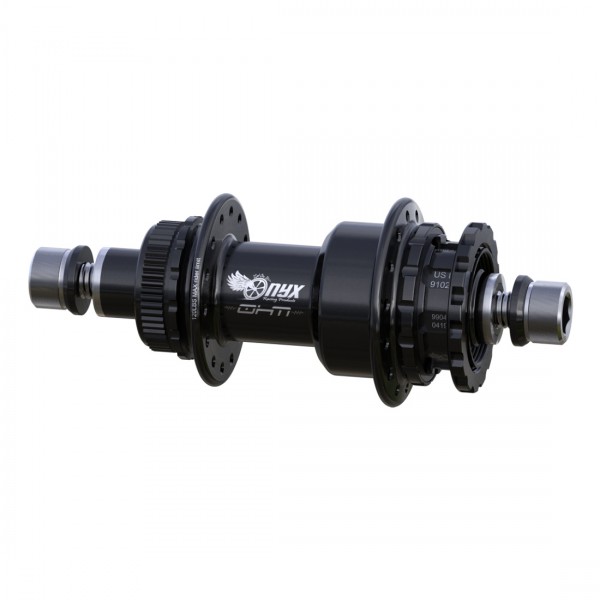

ONYX BMX OHM CL HG-110/10MM BOLT-ON REAR HUB

No reviews at the moment

The Onyx BMX Ohm series is designed to be the lightest option for first time riders under 120 pounds. Delivers instant engagement, low drag, and a lower weight design. Available only in anodized black only with either a 24 spoke or 28 spoke configuration for traditional bolt-on frames and forks (3/8”). A CenterLock Disc brake option is available for the 28 spoke version. Compatible with Shimano type (Hyperglide) cogs.
Bolt-on BMX hubs are designed to work in conjunction with Chain tensioner(s) and have a MAX bolt torque of 15 Nm.

  • Weight: 11.8 oz / 335 g
  • Hub Type: Rear
  • Axle Width - mm: 110
  • Axle Diameter - mm: 10
  • Spoke Count: 28
  • Attach Style: Bolt-on
  • Hub Shell Style: Solid
  • Driver style: Shimano Hyperglide®
  • Bolts: Stainless Steel or Titanium
  • Spoke Tension - Max kgf: 120

Option : Upgrade to hybrid ceramic bearings and titanium bolts.
Reduces OHM rear hub weight by 1.08 oz (30.7 grams).
(+30$)

All ONYX orders are custom orders made to your specifications when placed and are final and non returnable items. Please choose your options carefully and double check your build! ONYX Hub orders will ship direct to you from ONYX, once complete, if you are ordering in the USA. If you are ordering and shipping to outside of the USA, the hubs will ship to BRG in California first and then will be sent to you with the rest of your order.

Please note, ALL HUB orders, no matter the color from ONYX are made to order and currently are on a production delay of up to 4-6 weeks to complete.

$345.00
Color
Spoke Count
HUB OPTION
OHMCLHG110-10-28-STD
Quantity
In-Stock

Availability
Made to order
View Combination List

Payment method available

Manufactured by

ONYX

Shipped by

Shipped by ONYX RACING PRODUCTS

Note: This item will be shipped to you direct from the Manufacture listed, if you are located in the USA. This may take a few extra days to ship and will ship separately to you if you are ordering other items from different brands.

Real Stock - In stock items (as listed) ready to ship same day if ordered before 12pm Pacific Time. Inventory update daily. Drop Ship items & Items on Demand are noted for additional shipping times.
Fast Delivery - Items usually are out for Delivery to you in 2-5 business days (USA & In Stock Items). Free shipping (continental US parts orders) over $150.
Secure Payments - Payment by credit card SSL STRIPE or Paypal account. Online payment securely for Visa or Mastercard, Apple Pay, & Amazon Pay methods options also available.
Satisfied or Refund - If the product isn’t what you needed/expected You have 5 days from receipt of your order to return. Please see return policy for all info. Sale items and Clothing are final sales.

More Description

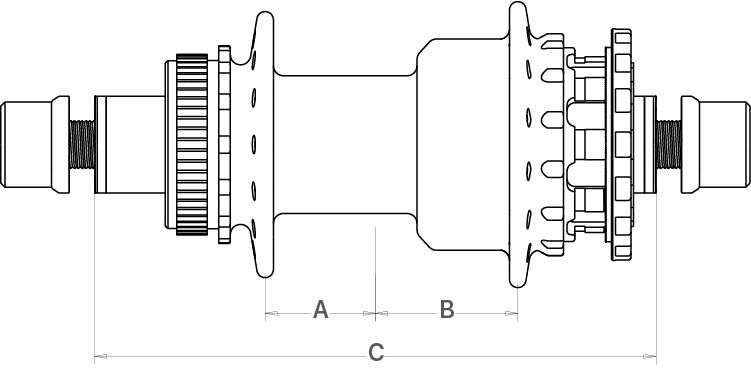

A - Hub Center To Flange Center, Non-Drive Side (mm) 21.65mm
B - Hub Center To Flange Center, Drive Side (mm) 21.65mm
C - Axle Width (mm) 110mm
Spoke Hole Circle Diameter, Drive Side (mm) 47mm
Spoke Hole Circle Diameter, Non-Drive Side (mm) 47mm
Spoke Hole Counts 28
Spoke Tension 120kgf Max

Product Details

OHMCLHG110-10-28-STD
