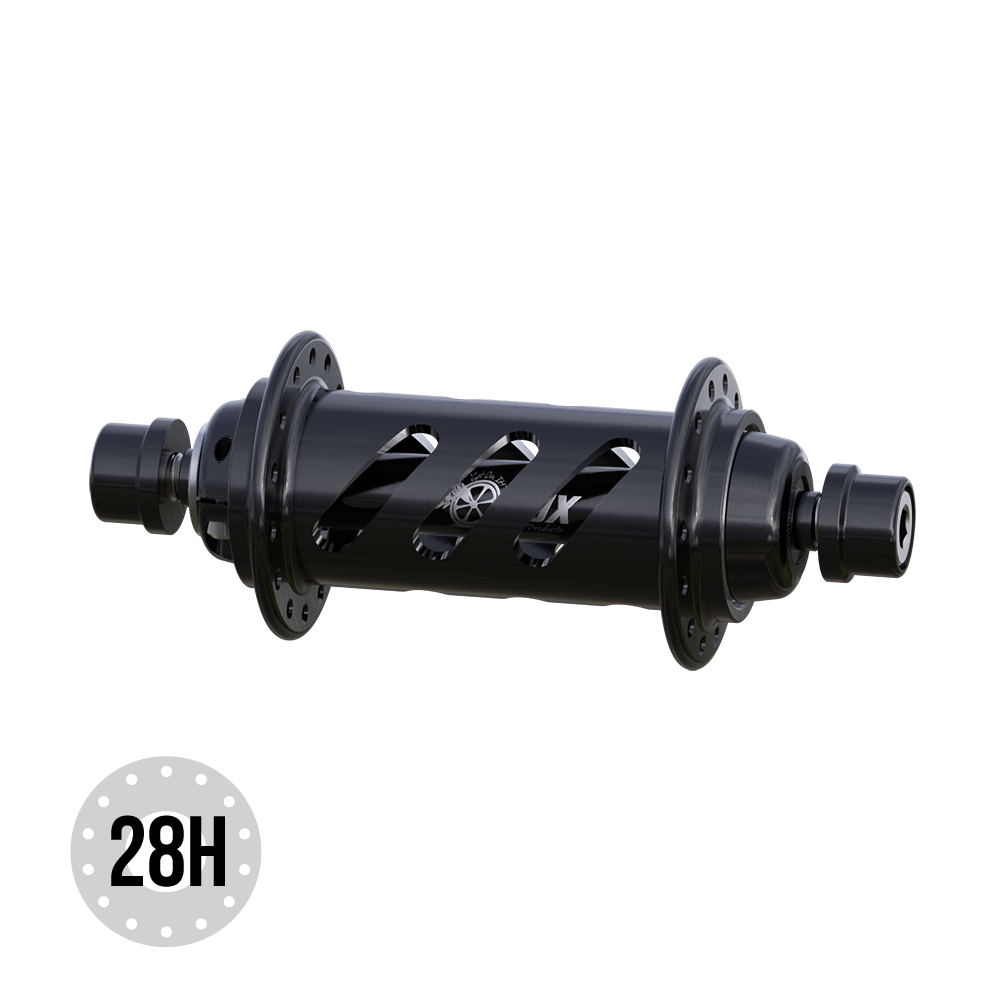

ONYX HELIX 100/8MM BOLT-ON FRONT HUB CUSTOM

ONYX HELIX 100/8MM BOLT-ON FRONT HUB CUSTOM View larger
ONYX HELIX 100/8MM BOLT-ON FRONT HUB CUSTOM
ONYX HELIX 100/8MM BOLT-ON FRONT HUB CUSTOM

ONYX HELIX 100/8MM BOLT-ON FRONT HUB CUSTOM

Onyx Racing Products: the top of the range of BMX Racing hubs.
Hybrid ceramic bearings reduce front wheel rolling resistance to the point of disbelief.

  • Aluminum 7075 body machined and perforated CNC
  • Small shape body
  • Hybrid-Ceramic bearings
  • Drilling: 28,36 spokes
  • Axle 8mm with Titanium BTR bolts
  • Weight: 165g

Design the hub of your dreams with our configurator.
Choose from all the options to build the exact hub for your specific needs.

All ONYX orders are custom, and made to order, and are final and non returnable items, so choose your options carefully and double check your build! ONYX Hub orders will shipped direct to you from ONYX, once complete, if you are ordering in the USA. If you are ordering and shipping to outside of the USA, the hubs will ship to BRG in California first and then sent to you with the rest of your order.

Please note, all orders from ONYX are currently on a slight delay, due to a backlog of the customer builds for all orders and will take up to 6-8 weeks to complete. This is due to each order being built to your exact design and customization. Hubs are currently taking up to 6-8 weeks in some cases to produce before shipping, no matter the color.

$175.00


Availability: In stock

Availability: Out of stock


- Shipped by -


Free Shipping all continental US orders over $150

Shipping in 1-5 business days (USA)

Satisfied or refunded

Secure Payment
Credit cards and Paypal

MORE INFORMATION

A - Hub Center To Flange Center, Non-Drive Side (mm) 33.8mm
B - Hub Center To Flange Center, Drive Side (mm) 33.8mm
C - Axle Width (mm) 100mm
Spoke Hole Circle Diameter, Drive Side (mm) 42mm
Spoke Hole Circle Diameter, Non-Drive Side (mm) 42mm
Spoke Hole Counts 28, 36
Spoke Tension 120kgf Max

ASSOCIATED PRODUCTS

Data sheet

AXLE 10mm
Wheel Type Front
Spokes number 28, 36
