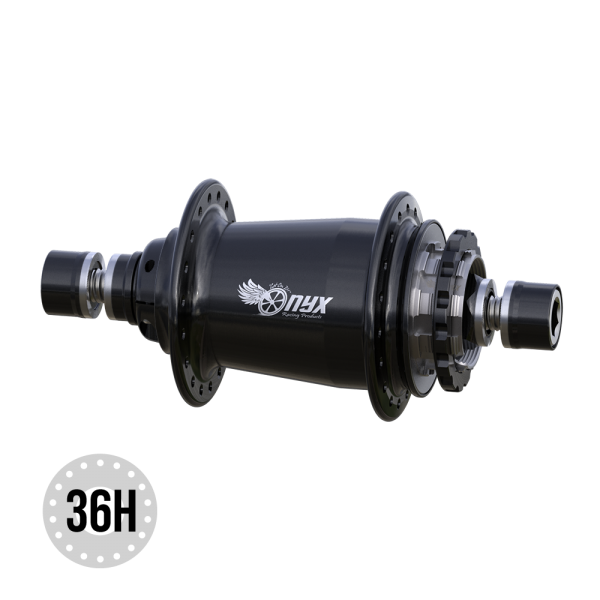

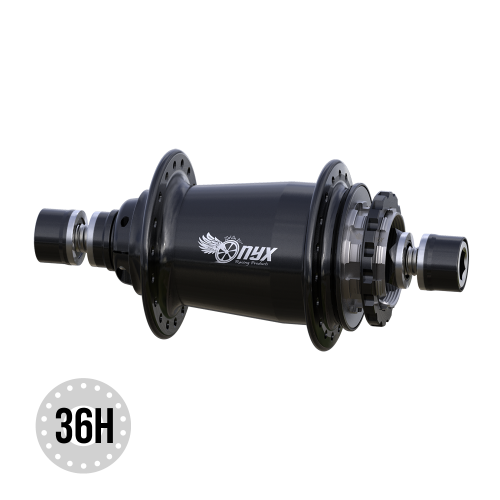

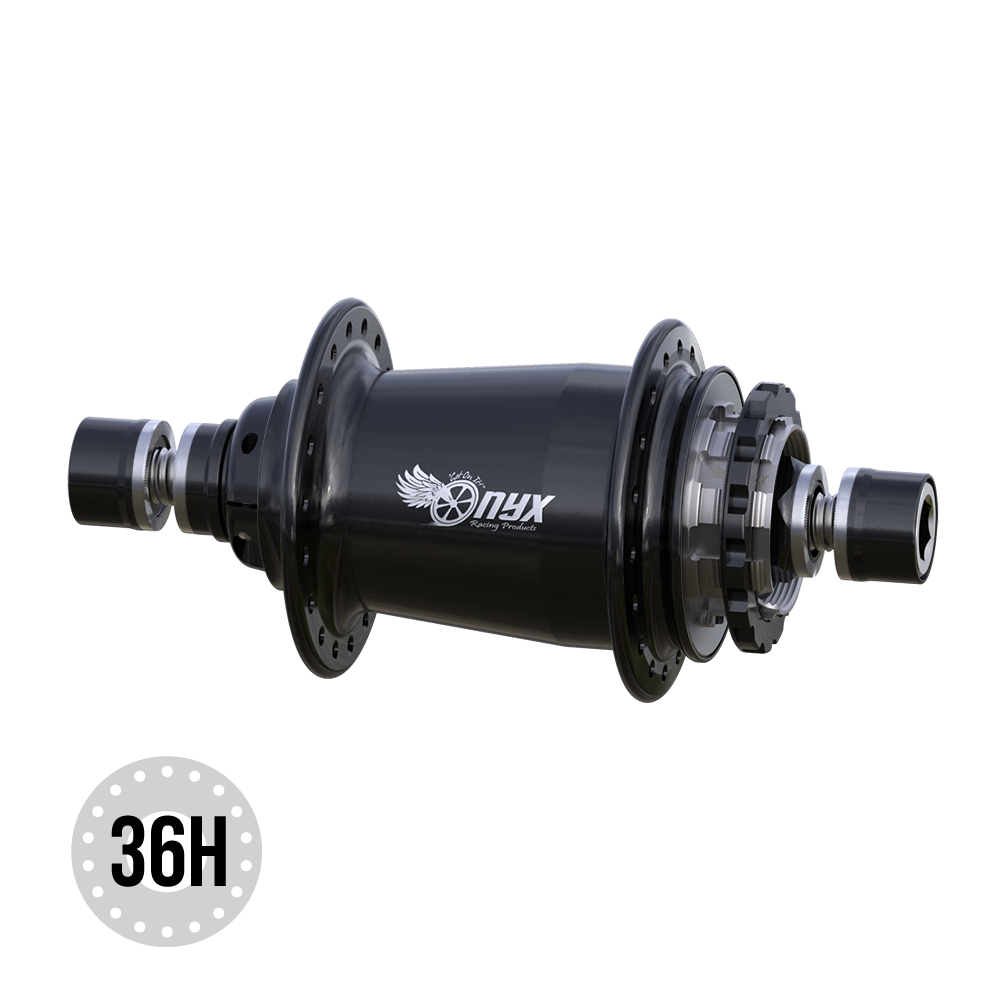

ONYX ULTRA 110/10MM REAR HUB CUSTOM

Onyx Racing Products: the top of the range of BMX Racing hubs.
Onyx hubs transfer power from your pedals to your rear bike wheel instantly for faster acceleration and more control.

  • Instant engagement, silent coasting
  • CNC machined aluminum 7075 body, reinforced
  • Small flanges
  • Hybrid-Ceramic bearings
  • Axle 10mm with Titanium BTR bolts
  • Drilling: 36 spokes
  • SOLD WITHOUT COG (standard Shimano)
  • Weight: 457g

Design the hub of your dreams with our configurator.
Choose from all the options to build the exact hub for your specific needs.

All ONYX orders are custom, and made to order, and are final and non returnable items, so choose your options carefully and double check your build! ONYX Hub orders will shipped direct to you from ONYX, once complete, if you are ordering in the USA. If you are ordering and shipping to outside of the USA, the hubs will ship to BRG in California first and then sent to you with the rest of your order.

Please note, all orders from ONYX are currently on a slight delay, due to a backlog of the customer builds for all orders and will take up to 9 weeks to complete. This is due to each order being built to your exact design and customization and is ONYX time delay to produce the items.. Hubs are currently taking up to 8 weeks while some parts, such as AXLE and custom color parts are also taking 8 weeks to produce before shipping, no matter the item from ONYX.

$475.00
Hubshell Color
Widgets Color
Spoke Count
ONYXULTRA10MMCUSTOM
Quantity
In-Stock

Availability
Made to order

Payment method available

Manufactured by

ONYX

Shipped by

Shipped by ONYX RACING PRODUCTS

More Description

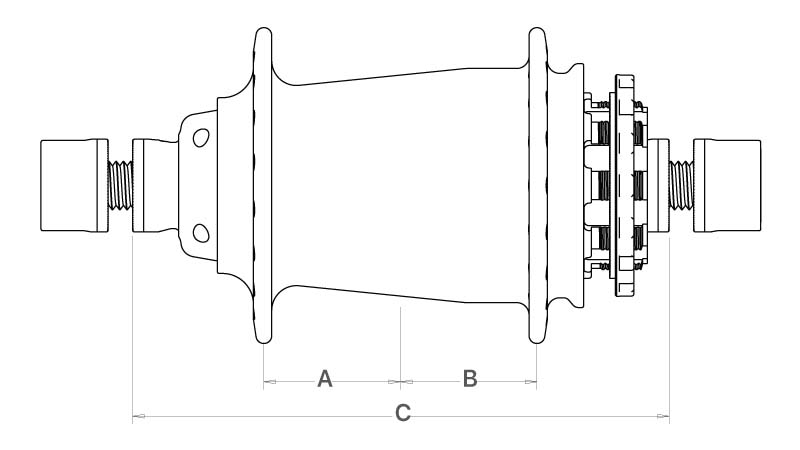

A - Hub Center To Flange Center, Non-Drive Side (mm) 28.07mm
B - Hub Center To Flange Center, Drive Side (mm) 27.91mm
C - Axle Width (mm) 110mm
Spoke Hole Circle Diameter, Drive Side (mm) 55mm
Spoke Hole Circle Diameter, Non-Drive Side (mm) 55mm
Spoke Hole Counts 36
Spoke Tension 120kgf Max


Product Details

ONYXULTRA10MMCUSTOM

Data sheet

AXLE
10mm
Wheel Type
Rear
Spokes number
36
