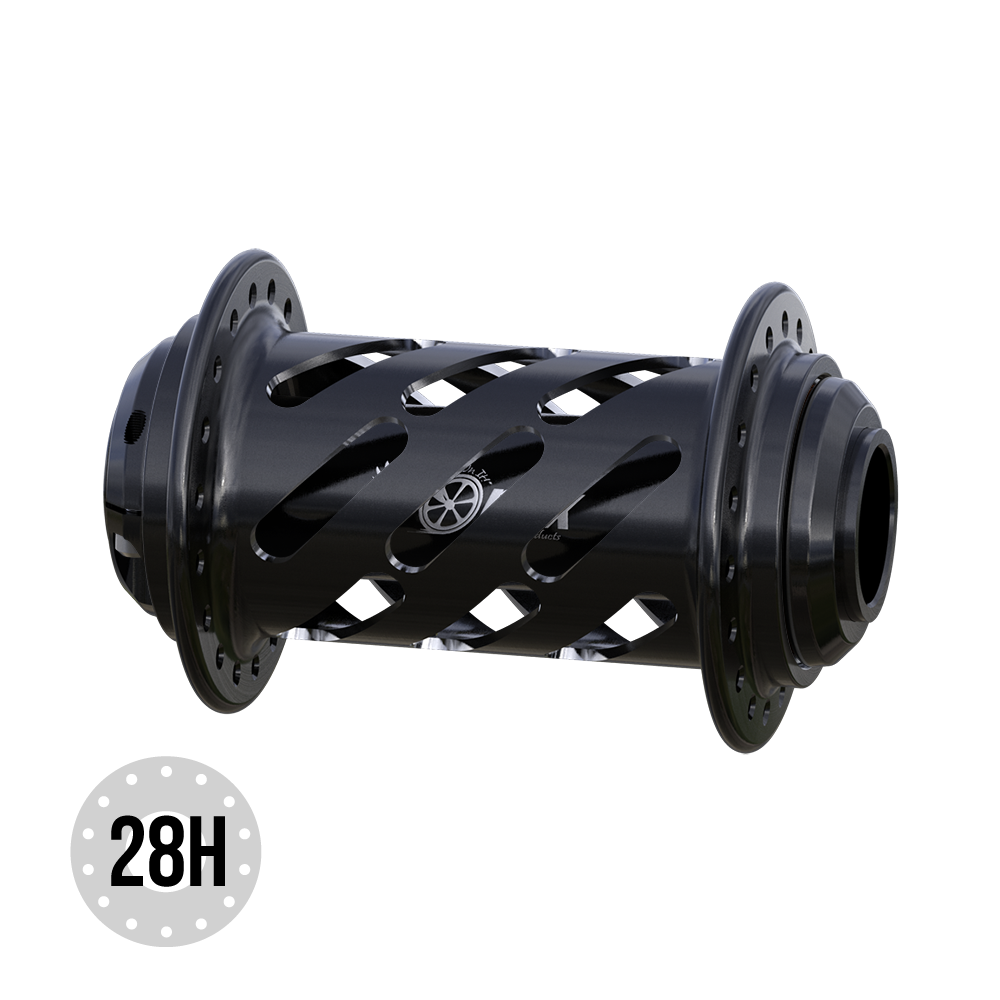

Onyx BMX 100/20mm Thru-bolt Helix Front Hub Hubshell Color Black Anodized Widgets Color Black Anodized Spoke Count 28H

Payment method available

Manufactured by

Shipped by

Note: This item will be shipped to you direct from the Manufacture listed, if you are located in the USA. This may take a few extra days to ship and will ship separately to you if you are ordering other items from different brands.

Description

Onyx Racing Products: the top of the range of BMX Racing hubs.
EZO ceramic bearings reduce front wheel rolling resistance to the point of disbelief.

Aluminum 7075 body machined and perforated CNC
Big shape body
EZO Ceramic bearings
For 20mm Axle
Drilling: 36 Spokes
Weight: 229g

Design the hub of your dreams with our configurator.
Choose from all the options to build the exact hub for your specific needs.

All ONYX items on BRGstore.com are custom orders, made to your specifications when placed. Please choose your options carefully and double check your build as all ONYX items are a final sale and are non returnable items. All USA customers, ONYX orders will ship direct to you from ONYX, once completed. If you are ordering and shipping outside of the USA, the hubs will ship to BRG in California first and then will be sent to you with the rest of your order.

Please note, ALL ONYX orders, no matter the color/Spec are custom made to order and ONYX currently are on a production delay of up to 5-7 weeks to complete.

SOLD WITHOUT AXLE!

See associated products at the bottom of the page.

A - Hub Center To Flange Center, Non-Drive Side (mm)	34.8mm
B - Hub Center To Flange Center, Drive Side (mm)	34.8mm
C - Axle Width (mm)	100mm
Spoke Hole Circle Diameter, Drive Side (mm)	50mm
Spoke Hole Circle Diameter, Non-Drive Side (mm)	50mm
Spoke Hole Counts	28/32/36
Spoke Tension	120kgf Max

Product Details

Reference ONYXHELIX20MMCUSTOM

Data sheet

AXLE: 20mm
Wheel Type: Front
Spokes number: 36
