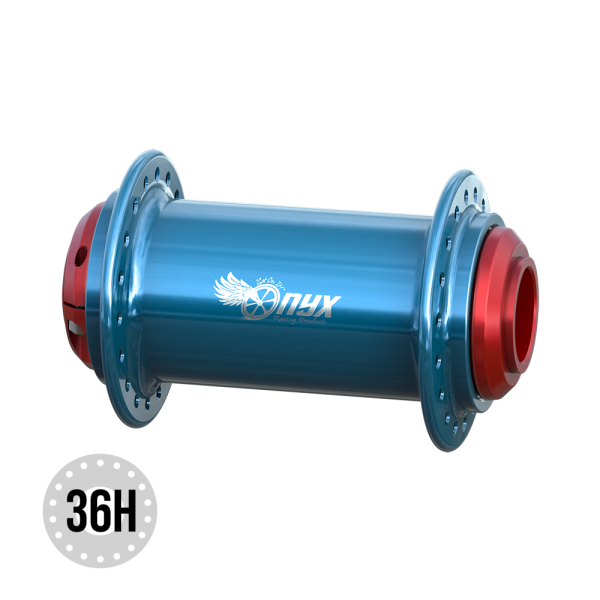

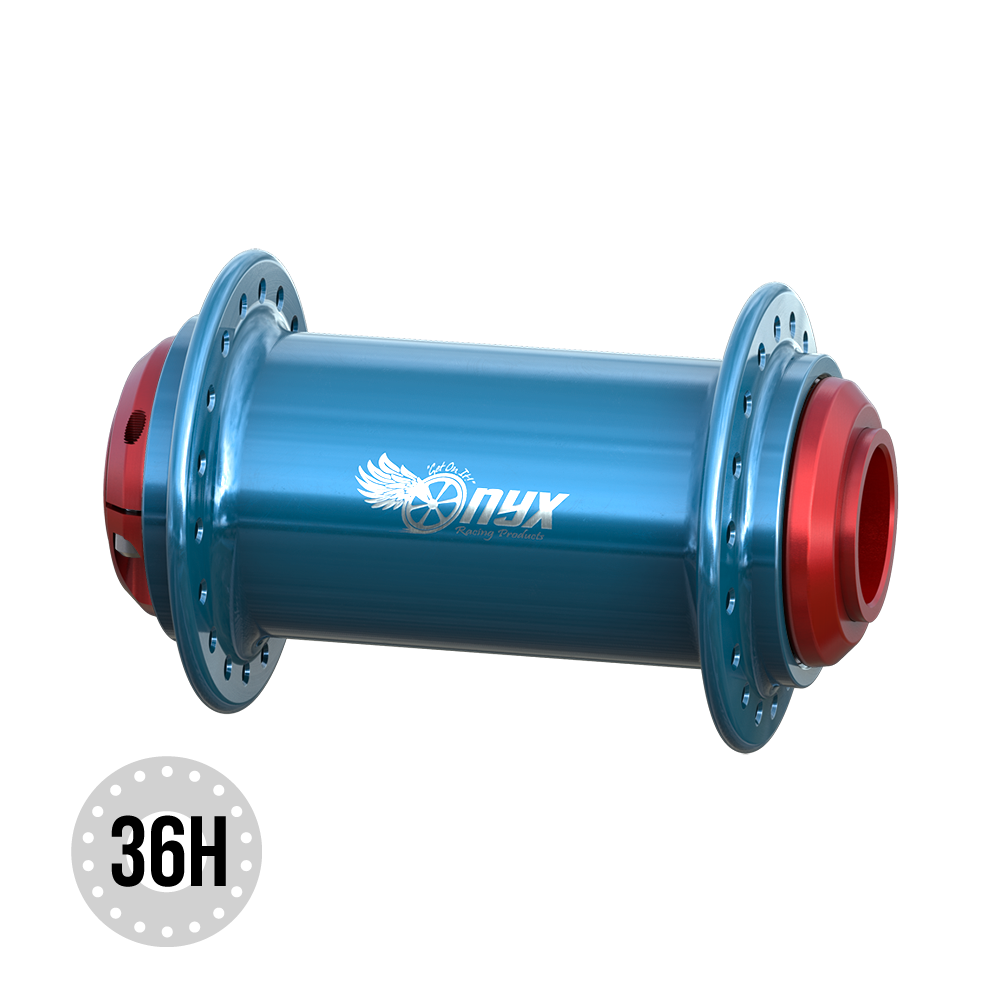

ONYX SOLID 100/20MM FRONT HUB CUSTOM

Onyx Racing Products: the top of the range of BMX Racing hubs.
Hybrid ceramic bearings reduce front wheel rolling resistance to the point of disbelief.

  • CNC machined aluminum 7075 body
  • Big shape body
  • Hybrid-Ceramic bearings
  • Drilling: 28, 32 or 36 spokes
  • For 20mm axle
  • Weight: 252g

Design the hub of your dreams with our configurator.
Choose from all the options to build the exact hub for your specific needs.

All ONYX orders are custom, and made to order, and are final and non returnable items, so choose your options carefully and double check your build! ONYX Hub orders will shipped direct to you from ONYX, once complete, if you are ordering in the USA. If you are ordering and shipping to outside of the USA, the hubs will ship to BRG in California first and then sent to you with the rest of your order.

Please note, all orders from ONYX are currently on a slight delay, due to a backlog of the customer builds for all orders and will take up to 6-8 weeks to complete. This is due to each order being built to your exact design and customization. Hubs are currently taking up to 6-8 weeks in some cases to produce before shipping, no matter the color.

SOLD WITHOUT AXLE!

See associated products at the bottom of the page.


$215.00
Hubshell Color
Widgets Color
Spoke Count
ONYXSOLID20MMCUSTOM
Quantity
In-Stock

Availability
Made to order

Payment method available

Manufactured by

ONYX

Shipped by

Shipped by ONYX RACING PRODUCTS

More Description

A - Hub Center To Flange Center, Non-Drive Side (mm) 34.8mm
B - Hub Center To Flange Center, Drive Side (mm) 34.8mm
C - Axle Width (mm) 100mm
Spoke Hole Circle Diameter, Drive Side (mm) 50mm
Spoke Hole Circle Diameter, Non-Drive Side (mm) 50mm
Spoke Hole Counts 28/32/36
Spoke Tension 120kgf Max

Product Details

ONYXSOLID20MMCUSTOM

Data sheet

AXLE
20mm
Wheel Type
Front
Spokes number
28; 32, 36
