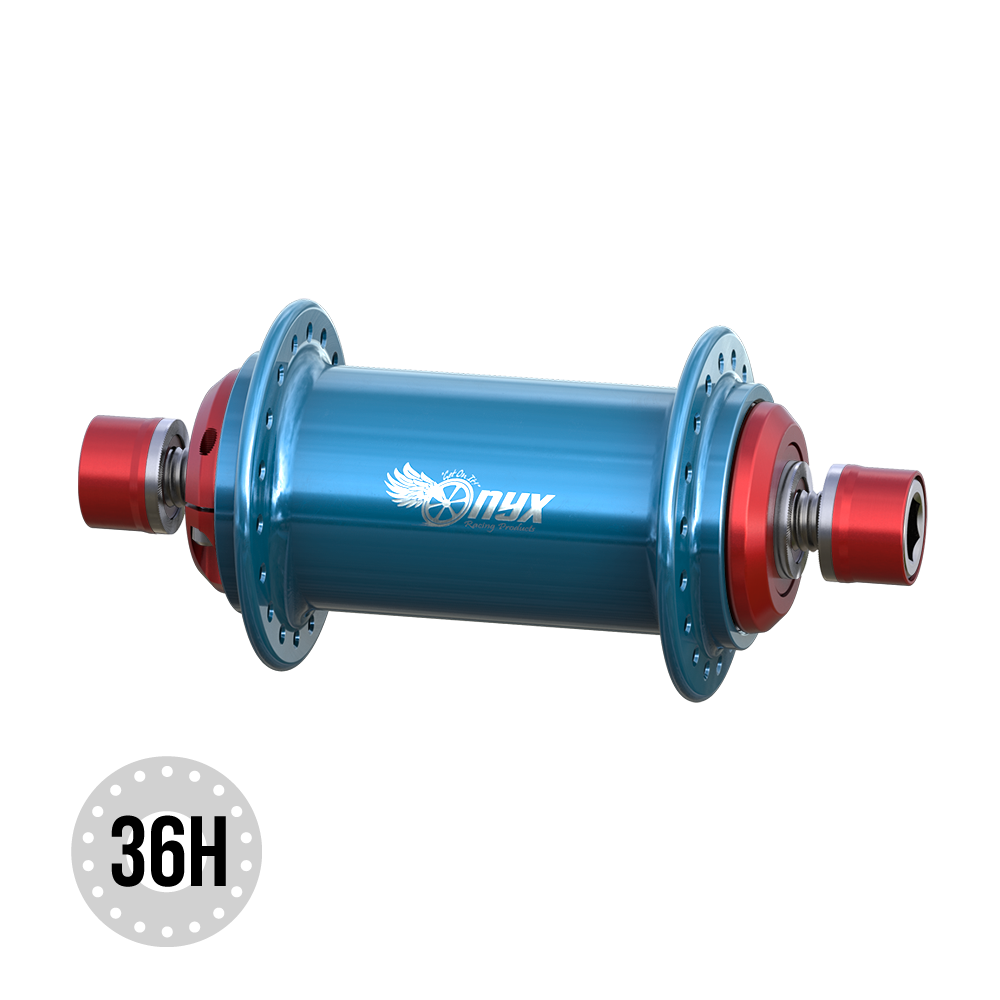

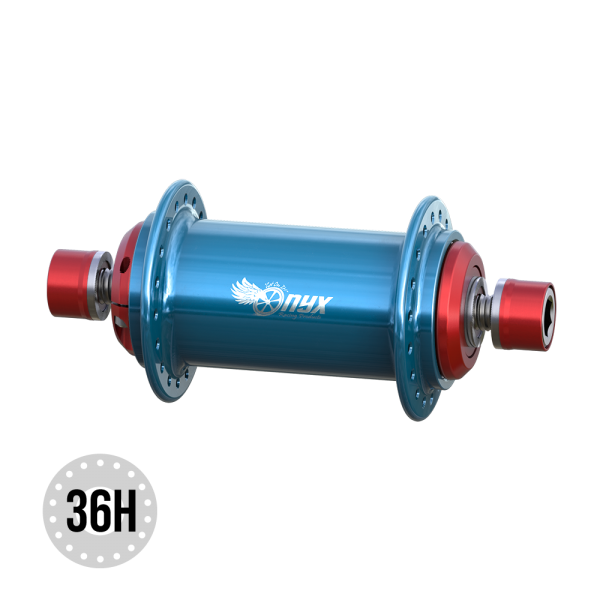

ONYX SOLID 100/10MM FRONT HUB CUSTOM

Onyx Racing Products: the top of the range of BMX Racing hubs.
Hybrid ceramic bearings reduce front wheel rolling resistance to the point of disbelief.

  • CNC machined aluminum 7075 body
  • Big shape body
  • Hybrid-Ceramic bearings
  • Drilling: 36 spokes
  • Axle 10mm with Titanium BTR bolts
  • Weight: 232g

Design the hub of your dreams with our configurator.
Choose from all the options to build the exact hub for your specific needs.

All ONYX orders are custom orders made to your specifications when placed and are final and non returnable items. Please choose your options carefully and double check your build! ONYX Hub orders will ship direct to you from ONYX, once complete, if you are ordering in the USA. If you are ordering and shipping to outside of the USA, the hubs will ship to BRG in California first and then will be sent to you with the rest of your order.

Please note, all orders from ONYX are currently on a delay, due to a backlog of the custom builds and take up to 6 weeks to complete. All ONYX Hubs are currently taking up to 6 weeks, while all other items from ONYX are taking up to 5 weeks to produce before shipping.

$235.00
Hubshell Color
Widgets Color
Spoke Count
ONYXSOLID10MMCUSTOM
Quantity
In-Stock

Availability
Made to order

Payment method available

Manufactured by

ONYX

Shipped by

Shipped by ONYX RACING PRODUCTS

Note: This item will be shipped to you direct from the Manufacture listed, if you are located in the USA. This may take a few extra days to ship and will ship separately to you if you are ordering other items from different brands.

More Description

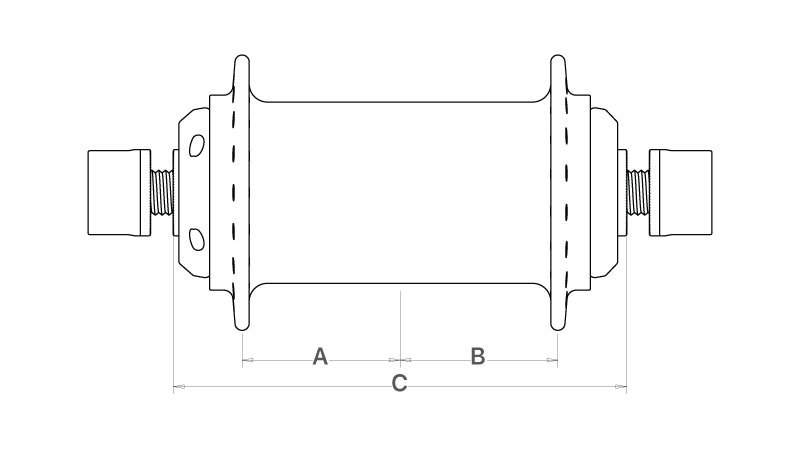

A - Hub Center To Flange Center, Non-Drive Side (mm) 34.8mm
B - Hub Center To Flange Center, Drive Side (mm) 34.8mm
C - Axle Width (mm) 100mm
Spoke Hole Circle Diameter, Drive Side (mm) 50mm
Spoke Hole Circle Diameter, Non-Drive Side (mm) 50mm
Spoke Hole Counts 36
Spoke Tension 120kgf Max

Product Details

ONYXSOLID10MMCUSTOM

Data sheet

AXLE
10mm
Wheel Type
Front
Spokes number
36
