CHASE ELEMENT PRO XL

COMING SOON!

$1,399.99

> Description...

Color

Purple / Light Blue
Grey / Light Grey

Reference CHCBELPXLGG

Quantity

Out-of-Stock

Availability

Coming Soon

View Combination List

Real Stock

Fast Delivery

Secure Payments

Satisfied or Refund

Payment method available

Manufactured by

Shipped by

Description

The ultimate Pro level complete bike - the Chase Element. With a updated frame design, that uses the same geometry as our Championship winning ACT and RSP Frame., letting you know it's a serious race bike. Our bikes can help you win by giving you an unfair, advantage with some of the most advanced technology for a complete bike in BMX racing.

Chase has been pushing the envelope for the past 12 years with our complete bikes and the newest edition of the Element, is the best BMX race bike we have ever offered.

The Element frame is built up with some of the best parts in BMX, including- IKON Tapered Pro Carbon 20mm Fork, Element Alloy Rims, Tioga Fastr Tires, KMC Chain, Sealed Bearing ISO Cassette hub with 72 points of engagement, 31.8 Handlebars & Stem, Insight PL4 Cranks, Insight Chainring, Grips, and Shimano Hydraulic Rear Brake with 120mm Rotor.

FRAME: Chase Element Pro XL 21.0" NEW Top Tube 7005 T6 Alloy, Tapered Integrated Head Tube 1-1/8" to 1.5", Close Drop Out
FORK: Ikon Tapered Carbon, Alloy 1-1/8" to 1.5" Steer Tube, 20mm Drop Out
STEM: Chase Element 31.8mm Alloy 53mm
HANDLEBAR: Chase Element 31.8mm 8.0"
CHAINRING: Insight 44T 4 Bolts BCD 104mm
CRANKSET: Insight PL4 Pro 175mm 2 Piece Crank Alloy Arm, 4 Bolt Spider, Press Fit BB86
HUBS: Sealed Bearing, 3/8" Bolts Front, ISO Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets Rear, 16T cog
RIMS: Chase Element Alloy 406 Double Wall 36H 20"x1.75" Presta Valve Front & Rear
TIRES: Tioga Fastr X Front & Rear
BRAKES: Shimano Hydraulic, 120mm Rotor
SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
PEDALS: Nylon platform. Pictured with Shimano XT Pedals but this was for photo purposes only.

RECOMMENDED SIZE:

5.5" - 5.10" / 1m65 - 1m78

WEIGHT:

20.85 LBS / 9.45 KG WITH PEDALS

SPECIFICATIONS :

FRAME	Chase Element Pro XL 21" NEW Top Tube 7005 T6 Alloy, Tapered Integrated Head Tube 1-1/8" to 1.5", Close Drop Out
FORK	Ikon Pro 20" Tapered Carbon, Alloy 1-1/8" to 1.5" Steer Tube, 20mm Drop Out with Adaptor 3/8" Axle, Alloy Top Cap
HEADSET	Tapered Integrated IS 42/52 1-1/8" to 1.5", Sealed Bearing
HANDLEBAR	Chase Element Cromo 8.0", Diameter 31.8mm, Rise, 28.5" Wide, 10° Back Sweep & 2° Up Sweep
GRIPS	Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	Chase Element 1-1/8" Steer Tube, Diameter 31.8mmmm, Length 50mm 6061 T6 Alloy CNC Laser Etched Logo
BB	Press Fit 68/73mm Cartridge Bearings
CHAINRING	Insight 44 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring
CRANK	Insight PL4 Pro 2 Piece Crank 175mm Alloy Arm, 4 Bolt Spider, Integrated Pedal Inserts, Cromo Chain Ring Bolts / Nuts
PEDAL	Nylon Platform Pedal 9/16"
CHAIN	KMC Z1 narrow 1/2"x3/32"
COG	16 Tooth
FRONT HUB	36H, Sealed Bearing, 3/8" Bolts
REAR HUB	ISO 36H, Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES	14 Gauge, Steel
NIPPLES	Brass 14Gx5/8"
RIMS	Chase Element Alloy 406 Double Wall 36H 20"x1.75" Presta Valve
FRONT TIRE	Tioga Fastr X 20"x1.75" 60 TPI Wire Bead
REAR TIRE	Tioga Fastr X 20"x1.60" 60 TPI Wire Bead
TUBES	20''x1.5"-1.75" Presta Valve
BRAKES	Shimano Disc Brake BL-MT200(R) Hydraulic, 120mm Rotor
SADDLE	ELEVN PC Pivotal
SEAT POST	Chase Aero Pivotal 27.2x260mm Alloy
SEAT CLAMP	Chase Aero 27.2mm QR Alloy
CHAIN TENSIONER	Integrated Built-In With New Lock Disc Adaptor

GEOMETRIES :

cadre

FRAME SIZE	TT	CS min	LR	AF	SA	HT	SPL	BBH	WB	WHEELS
Expert	20" - 508 mm	13.5" - 342.9 mm	1.5" - 38.1 mm	73°	70°	4.7" - 120 mm	9.2" - 236 mm	11" - 279.4 mm	35.45" - 900.68mm	20×1-3/8"
Pro	20.5" - 520.7 mm	14.25" - 362 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	37" - 940.46mm	20×1.5"
Pro XL	21" - 533.4 mm	14.3" - 363.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	37.6" - 955.10mm	20×1.75"
Pro XXL	21.5" - 546.1 mm	14.5" - 368.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	38.3" - 973.39mm	20×1.75"
Pro XXXL	22.0" - 558.8 mm	14.5" - 368.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	39" - 993.01mm	20×1.75"
Pro Cruiser	21.5" - 546.1 mm	15.25" - 387.3 mm	1.5" - 38.1 mm	73°	69,5°	4.7" - 120 mm	9.8" - 250 mm	12" - 304.8 mm	38.33" - 973.65mm	24×1.75"
Pro Cruiser +	22.0" - 558.8 mm	15.25" - 387.3 mm	1.5" - 38.1 mm	73°	69,5°	4.7" - 120 mm	9.8" - 250 mm	12" - 304.8 mm	38.88" - 987.67mm	24×1.75"

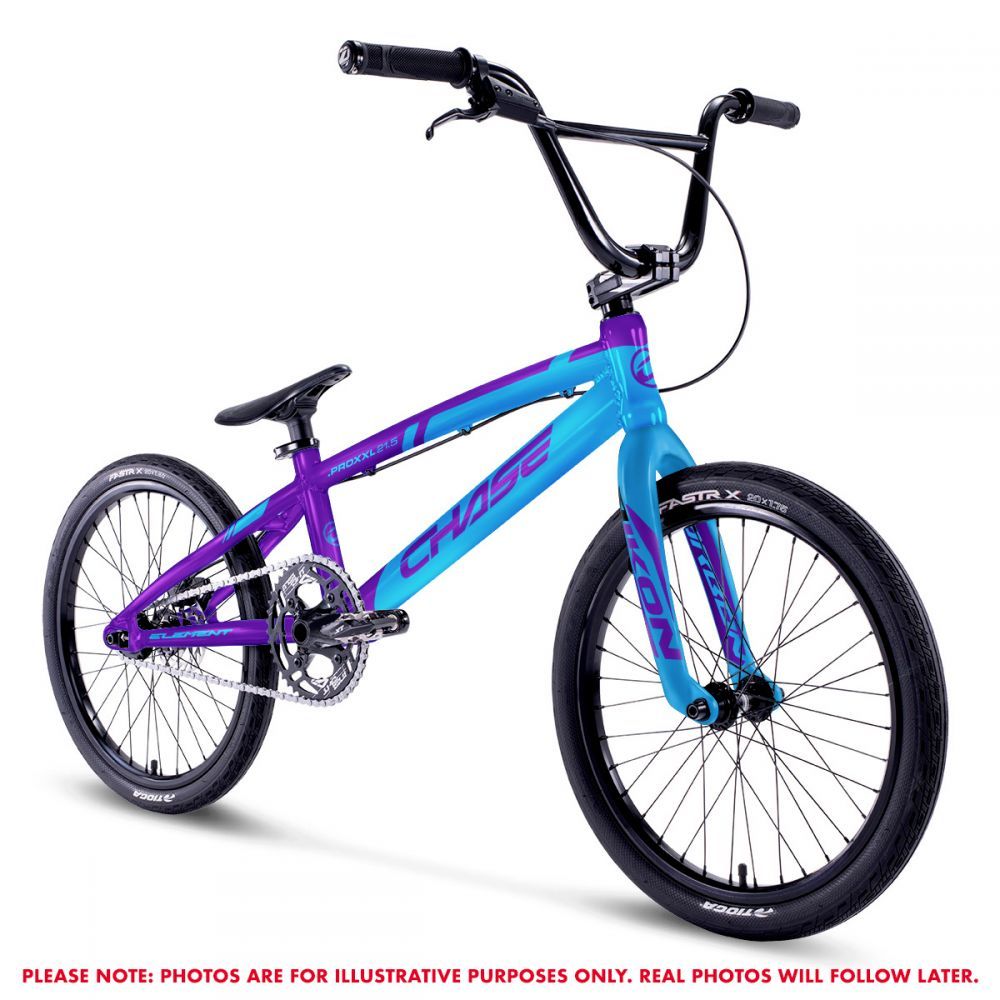

NOTE: Chase Element Pictured with Shimano XT Pedals but are for photo purposes only. Bikes come with Nylon Platform Pedals.

Photos are for illustrative purposes only. Real photos will follow later.

TECHNOLOGIES

> See our Complete bike Warranties conditions

All bikes must be originally assembled by an authorized dealer from original date of purchase to comply with Warranty program.
Complete Bikes Frame have a 1 Year MFG Warranty for defects. Parts have a 6 month MFG Warranty for defects. Strpped bolts, loose bolts causing improper tolerances, and items damaged due to improper riding and crashing are not covered and void any warranty.

Product Details

Reference CHCBELPXLGG

Data sheet

FRAME SIZE: Pro XL
RIDER SIZE: 5.5" - 5.10"

Image	Combination	Reference	UPC	Price	Stock
	Color :	CHCBELPXLPB	764333103912	$1,399.99	Coming Soon
	Color :	CHCBELPXLGG	764333103929	$1,399.99	Coming Soon
