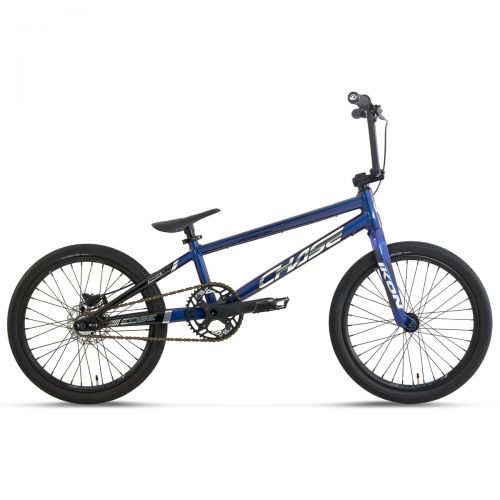

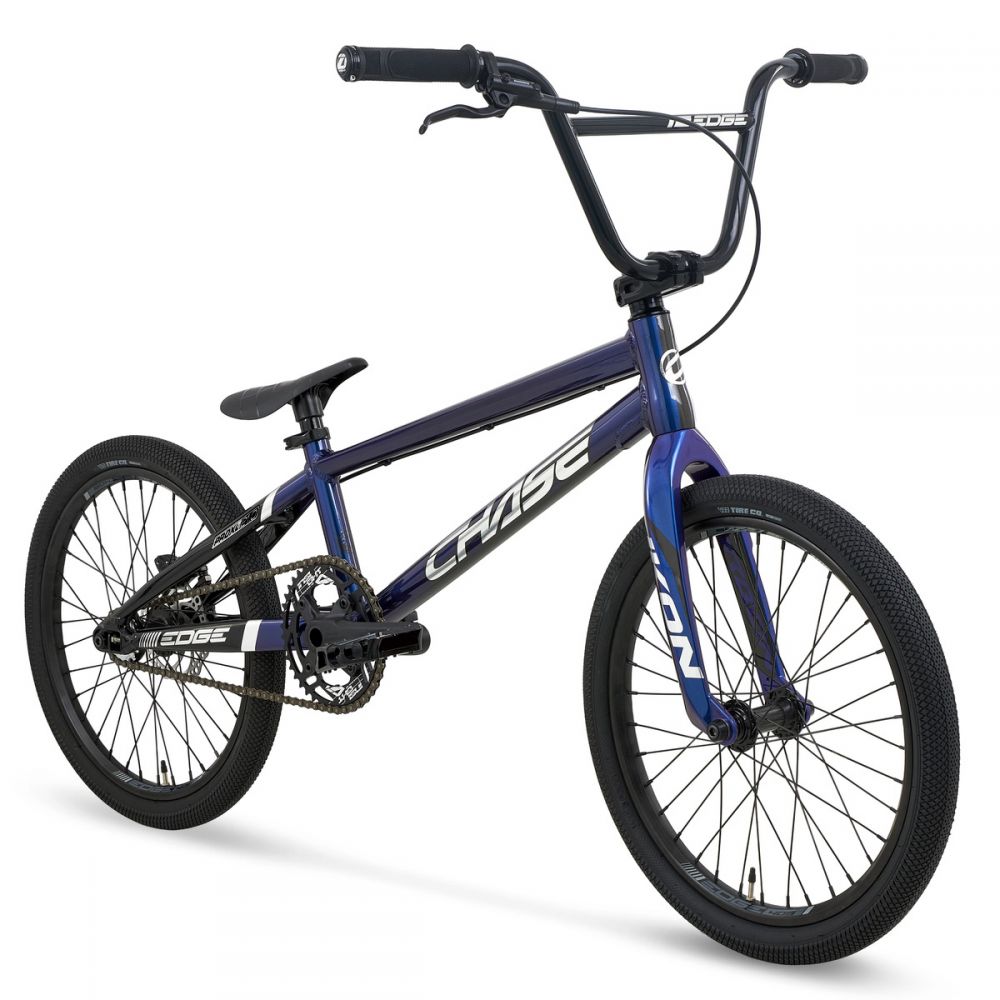

CHASE EDGE PRO XL

The all-new CHASE Edge is a race-ready BMX bike, ideal for riders looking to get serious and take their riding to the next level.

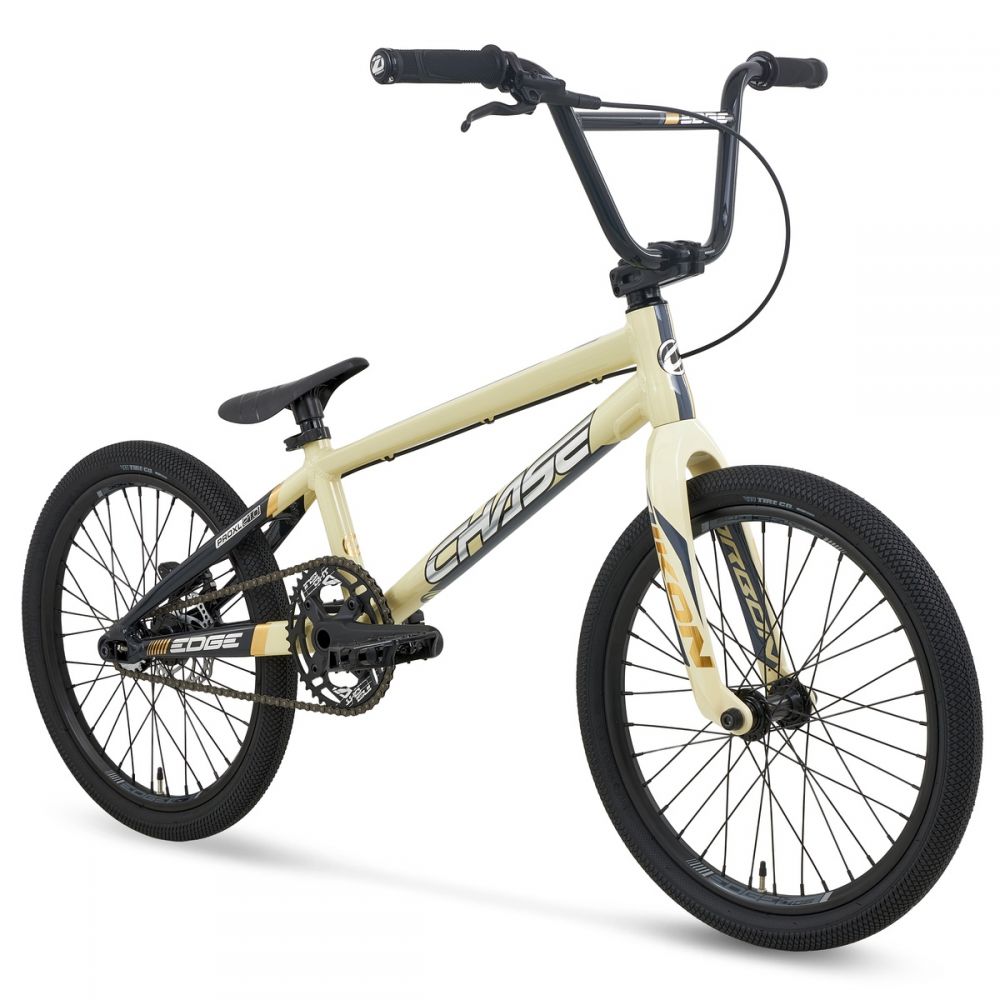

Already considered a refined machine, the new Edge has been further improved: it now features Shimano hydraulic disc brakes (on Junior sizes and up; mechanical for Micro and Mini), all-new 2-piece aluminum Chase cranksets with a 24mm spindle (Expert XL and up), optimized gear ratios and crank arm lengths, a two-tone paint job with fresh graphics, and enclosed dropouts with an integrated chain tensioning system. The Edge frame is constructed from triple-butted, hydroformed 6061 aluminum tubing and features an integrated head tube. Other highlights include a 4130 chromoly steel fork and handlebar (on the Micro model), Ikon Carbon fork options on two colorways, double-wall rims, a cassette rear hub with a triple-pawl engagement system, and Vee Rubber Speedster tires. The combination of these components arguably makes the CHASE Edge one of the highest-performing race BMX bikes on the market today.

• FRAME: Chase Edge Pro XL 21″ New Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
• FORK: Ikon Pro Carbon, 1-1/8" Steer Tube Alloy
• STEM: Chase Edge 1-1/8" Steer Tube, Length 50mm, 6061 T6 Alloy
• HANDLEBAR: Chase Edge Cr-mo 8"
• HEADSET: Integrated Sealed Bearing
• CHAINRING: Insight 43T 4 Bolts BCD 104mm
• CRANKSET: Chase Edge 2 Pieces Alloy 175mm
• HUBS: 36H, Sealed Bearing, 3/8" Bolts Front, ISO 36H, Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets Rear, 16T cog
• RIMS: Chase Edge Alloy 406 Double Wall 36H 20"x1.50" Presta Valve Front and Rear
• TIRES: Vee Rubber SpeedSter 20″x1.75″ Front and 20″x1.60″ Rear

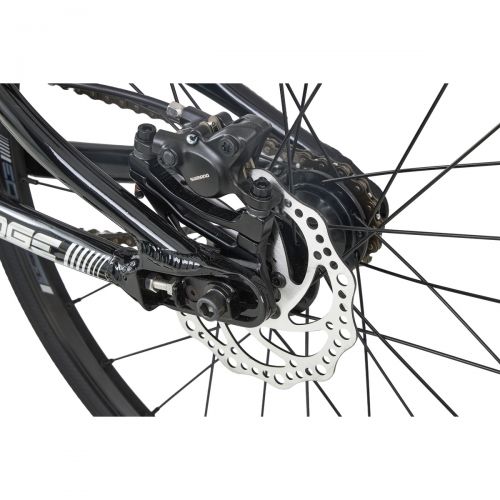

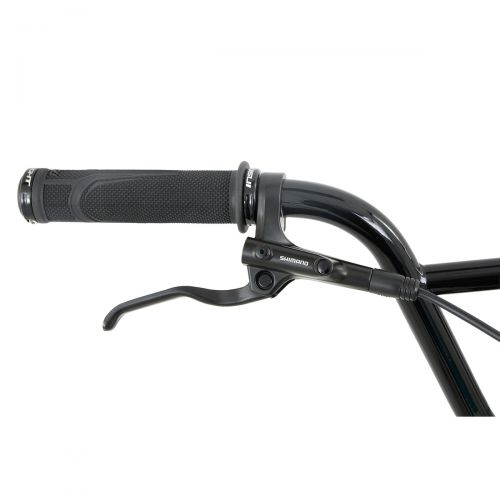

• BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
• SEAT: Expert/Pro Combo Alloy Post/Nylon Sea

RECOMMENDED SIZE: 5′ 4,6″ – 5′ 10,1″ / 1M64 – 1M78

WEIGHT: 20.7 LBS / 9,41 KG WITHOUT PEDALS

RIDERS SIZES CHART

GEOMETRIES
Sizes	TT	CS min	LR	HA	SA	HT	SPL	BBH	WB	Wheels
Micro	16.25" 412.75 mm	10.85" 275.6 mm	1.8" 46 mm	71°	69°	4" 100 mm	8" 203.5 mm	10.25" 254 mm	732 mm	18x1"
Mini	17.25" 438.15 mm	12.25" 312 mm	1.8" 46 mm	72°	70°	4.33" 110 mm	8.8" 225 mm	10.6" 269.2 mm	800 mm	20x1-1/8"
Junior	18.75" 476.25 mm	12.5" 317.5 mm	1.8" 46 mm	73°	72°	4.33" 110 mm	8.8" 225 mm	10.6" 269.2 mm	859.9 mm	20x1-1/8"
Expert	19.75" 501.65 mm	13" 330.2 mm	1.8" 46 mm	73°	72°	4.33" 110 mm	8.8" 225 mm	11" 279.4 mm	883.8 mm	20x1-3/8"
Expert XL	20" 508 mm	13.5" 353 mm	1.8" 46 mm	73°	72°	4.7" 120 mm	8.8" 225 mm	11.5" 292.1 mm	903 mm	20x1.50"
Pro	20.5" 520.7 mm	14" 355.6 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.4" 238 mm	11" 279.4 mm	938 mm	20x1.75"
Pro XL	21" 533.4 mm	14.15" 359.4 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.3" 238 mm	11.5" 292.1 mm	945.2 mm	20x1.75"
Pro XXL	21.5" 546.1 mm	14.15" 359.4 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.3" 238 mm	11.5" 292.1 mm	969.5 mm	20x1.75"
Cruiser	21.5" 546.1 mm	14.5" 368.3 mm	1.8" 46 mm	74°	71°	4.7" 120 mm	10.6" 270 mm	12" 304.8 mm	964.5 mm	24x1.75"

Complete bike specifications are subject to change throughout the year due to component upgrades, parts shortages, and modifications made during the production cycle to improve quality. Consequently, actual specifications may differ slightly from those shown in photos or listed.
