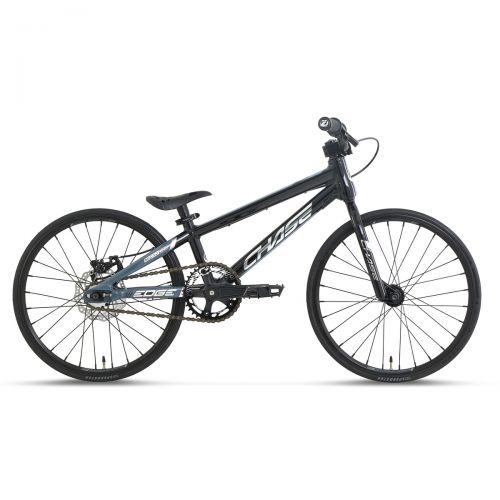

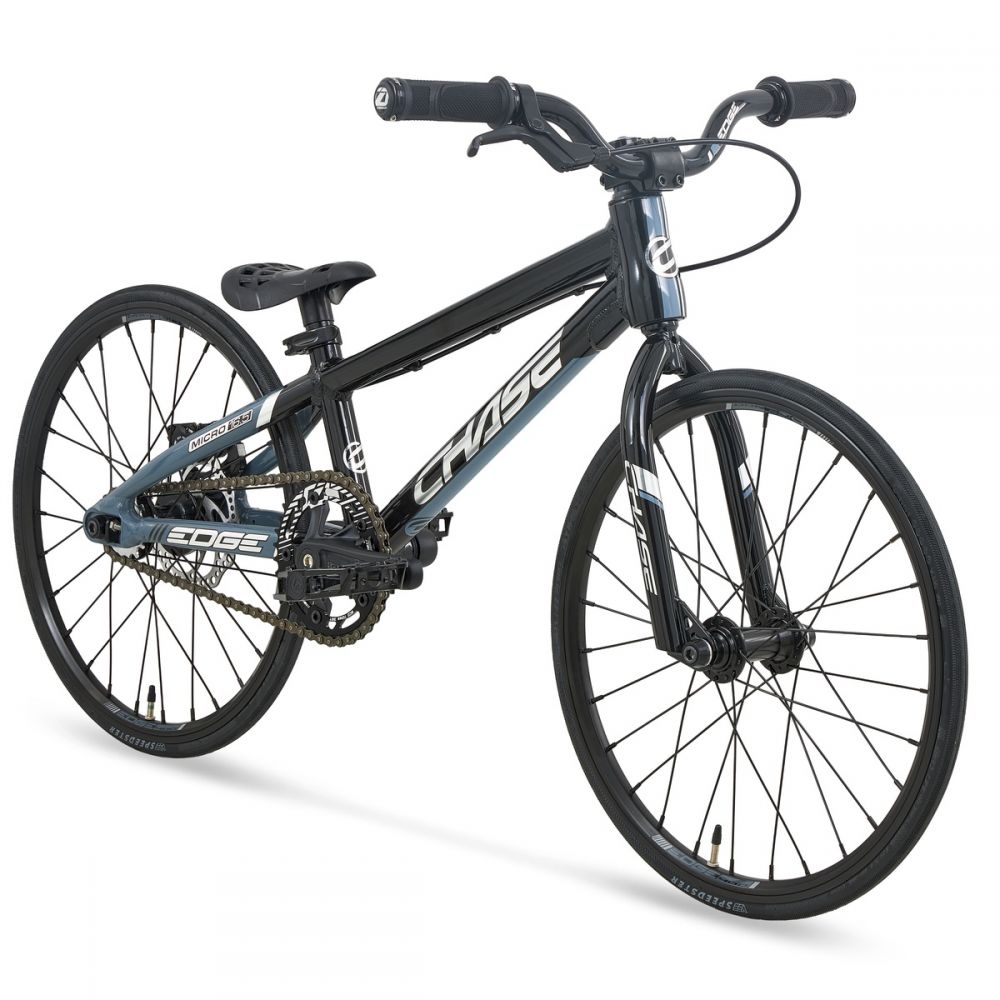

CHASE EDGE MICRO

The all-new CHASE Edge is a race-ready BMX bike, ideal for riders looking to get serious and take their riding to the next level.

Already considered a refined machine, the new Edge has been further improved: it now features Shimano hydraulic disc brakes (on Junior sizes and up; mechanical for Micro and Mini), all-new 2-piece aluminum Chase cranksets with a 24mm spindle (Expert XL and up), optimized gear ratios and crank arm lengths, a two-tone paint job with fresh graphics, and enclosed dropouts with an integrated chain tensioning system. The Edge frame is constructed from triple-butted, hydroformed 6061 aluminum tubing and features an integrated head tube. Other highlights include a 4130 chromoly steel fork and handlebar (on the Micro model), Ikon Carbon fork options on two colorways, double-wall rims, a cassette rear hub with a triple-pawl engagement system, and Vee Rubber Speedster tires. The combination of these components arguably makes the CHASE Edge one of the highest-performing race BMX bikes on the market today.

• FRAME: Chase Edge Micro 16.25" NEW Top Tube 6061 T6 Alloy, Closed Drop Out
• FORK: Chase Edge Full Cr-mo, 1" Steer Tube With Tapered Blades
• STEM: Chase Edge 1" Steer Tube 40mm, 6061 T6 Alloy
• HANDLEBAR: Chase Edge Alloy 2.25" Rise
• HEADSET: Integrated IS 42/42 Reductor 1", Sealed Bearing
• CHAINRING: Insight 36T 5 Bolt 110mm 1/2"x3/32" 3mm Alloy
• CRANKSET: Chase Edge 3 Piece Crank 130mm Alloy
• HUBS: 28H, Sealed Bearing, 3/8" Bolts Front, ISO 28H, Sealed Bearing, 3/8" Bolts, 3 Pawls Triple Angle Engagement 24T Ratchets Rear
• RIMS: Double Wall 28H 20"x1"
• TIRES: VEE RUBBER Speedster 18″x1″ Front and Rear

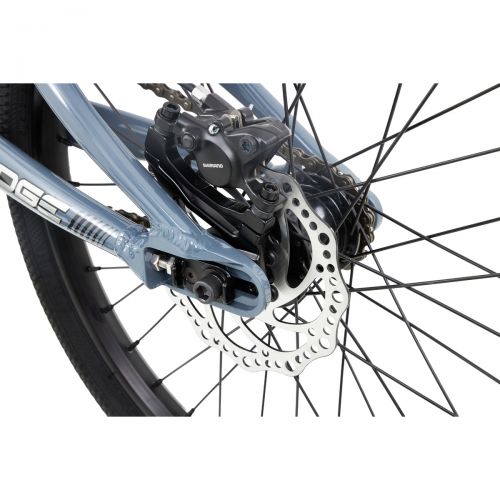

• BRAKES: ISO 140mm Mechamical System

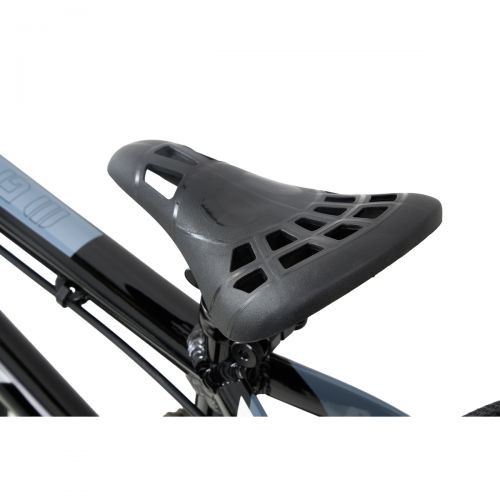

• SEAT: Mini Combo Alloy Post/Nylon Seat

RECOMMENDED SIZE: 3′ 3,4″ – 3′ 8,9″ / 1M00 – 1M15

WEIGHT: 15.4 LBS / 6,99 KG WITHOUT PEDALS

RIDERS SIZES CHART

GEOMETRIES
Sizes	TT	CS min	LR	HA	SA	HT	SPL	BBH	WB	Wheels
Micro	16.25" 412.75 mm	10.85" 275.6 mm	1.8" 46 mm	71°	69°	4" 100 mm	8" 203.5 mm	10.25" 254 mm	732 mm	18x1"
Mini	17.25" 438.15 mm	12.25" 312 mm	1.8" 46 mm	72°	70°	4.33" 110 mm	8.8" 225 mm	10.6" 269.2 mm	800 mm	20x1-1/8"
Junior	18.75" 476.25 mm	12.5" 317.5 mm	1.8" 46 mm	73°	72°	4.33" 110 mm	8.8" 225 mm	10.6" 269.2 mm	859.9 mm	20x1-1/8"
Expert	19.75" 501.65 mm	13" 330.2 mm	1.8" 46 mm	73°	72°	4.33" 110 mm	8.8" 225 mm	11" 279.4 mm	883.8 mm	20x1-3/8"
Expert XL	20" 508 mm	13.5" 353 mm	1.8" 46 mm	73°	72°	4.7" 120 mm	8.8" 225 mm	11.5" 292.1 mm	903 mm	20x1.50"
Pro	20.5" 520.7 mm	14" 355.6 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.4" 238 mm	11" 279.4 mm	938 mm	20x1.75"
Pro XL	21" 533.4 mm	14.15" 359.4 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.3" 238 mm	11.5" 292.1 mm	945.2 mm	20x1.75"
Pro XXL	21.5" 546.1 mm	14.15" 359.4 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.3" 238 mm	11.5" 292.1 mm	969.5 mm	20x1.75"
Cruiser	21.5" 546.1 mm	14.5" 368.3 mm	1.8" 46 mm	74°	71°	4.7" 120 mm	10.6" 270 mm	12" 304.8 mm	964.5 mm	24x1.75"

Complete bike specifications are subject to change throughout the year due to component upgrades, parts shortages, and modifications made during the production cycle to improve quality. Consequently, actual specifications may differ slightly from those shown in photos or listed.
