CHASE RACE SERIES JUNIOR

COMING SOON!
$499.99

> Description...

Color
CHCBRSJUNGH
Quantity
Out-of-Stock

Availability
Coming Soon

View Combination List
Real Stock
Fast Delivery
Secure Payments
Satisfied or Refund

Payment method available

Manufactured by

CHASE BICYCLES

Shipped by

Shipped by BMX RACING GROUP

Description

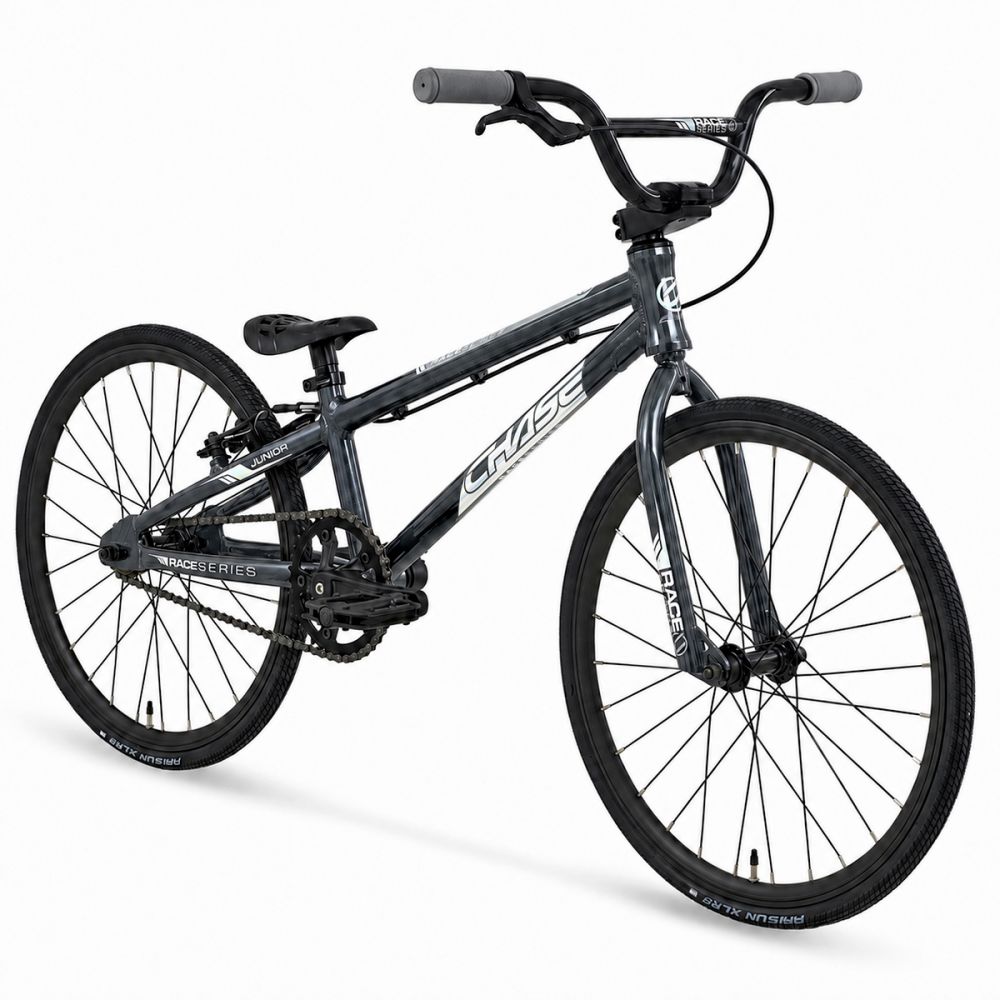

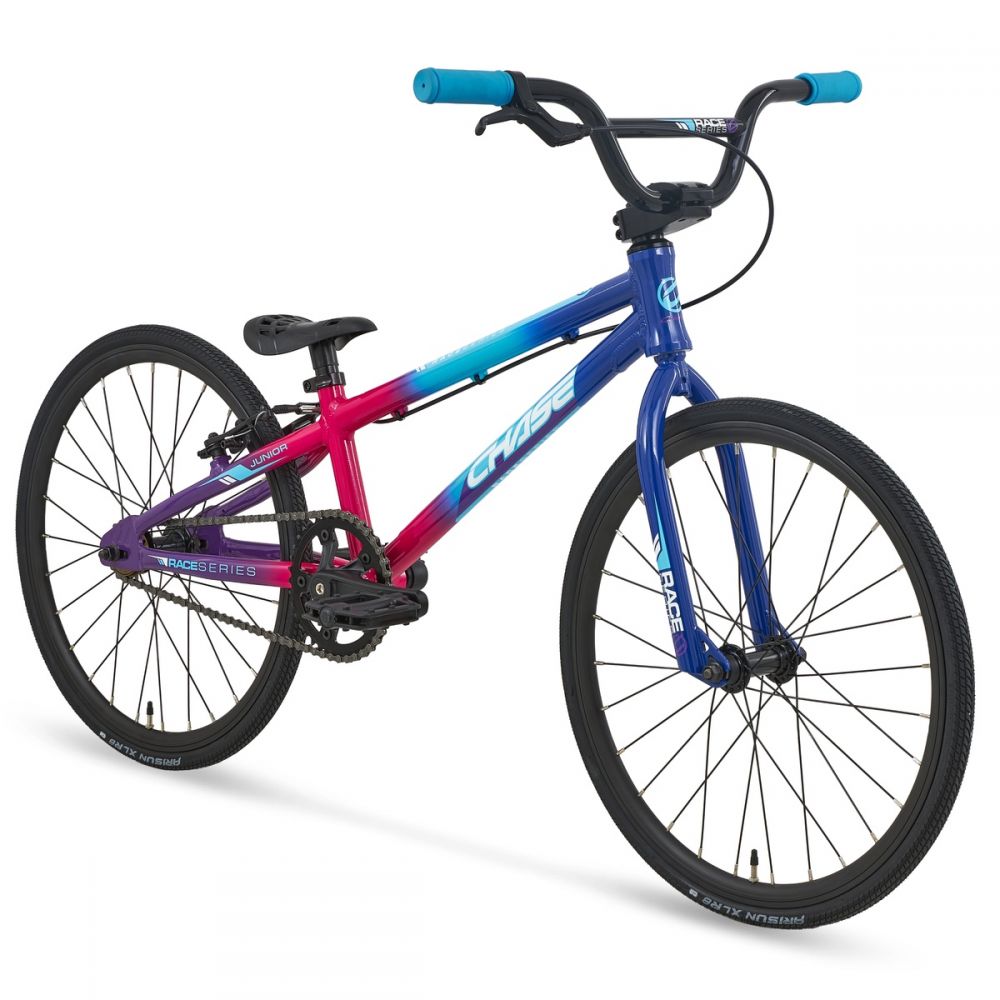

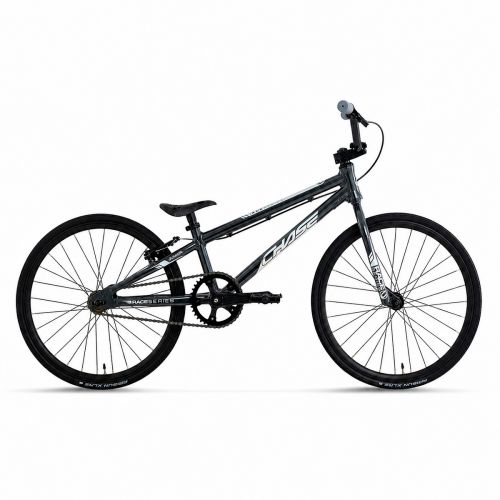

The New Chase Race series Junior is the perfect entry-level 20″ BMX race bike for the beginning youth racers. Made with an aluminum frame and integrated head tube, using the winning race proven geometry from our championship winning brand, Chase BMX, This BMX is a truly certified BMX racing bike. With race inspired graphics, 100% chromoly bars and forks, sealed hubs, double walled rims, and raced tuned parts from great companies like KMC and ARISUN, giving you the best value for your money in a entry-level race bike, from a company that actually races.

  • FRAME: Junior 18.75" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals
  • FORK: Full Cr-mo, 1" Steer Tube
  • STEM: Top Load, 1" Steer Tube, Length 45mm, 6061-T6 Alloy
  • HANDLEBAR: CHASE Chromo 4.25″
  • HEADSET: Integrated IS 42/42 Reductor 1", Sealed Bearing
  • CHAINRING: 38T 5 Bolts BCD 110mm, Steel
  • CRANKSET: 3 Pieces Crank 145mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts
  • HUBS: 28H, Double Contact Seals Bearing, 3/8" Axle/Nuts, 16T cog
  • RIMS: Double Wall Alloy 28H 1-1/8" Presta Valve Front and Rear
  • TIRES: Arisun XLR8 1-1/8" Wire Bead Front and Rear
  • BRAKES: V-Brake 95mm, Junior/Expert 2 Fingers lever
  • SEAT: Mini Combo Alloy Post/Nylon Seat

RECOMMENDED SIZE: 4′ – 4′ 5.1″ / 1M22 – 1M35
WEIGHT: 7.7 Kg / 16.98 lb Without Pedal



GEOMETRIES

cadre

FRAME SIZETTCS minLRAFSAHTSPLBBHWHEELS
Micro 16.15 - 410.21 mm 10.85" - 275.6 mm 1.8" - 46 mm 71° 69° 4.00" - 100 mm 8" - 203.5 mm 9.10" - 231.14 mm 18×1"
Mini 17.25" - 438.15 mm 12.50" - 317.5 mm 1.8" - 46 mm 72° 70° 4.33" - 110 mm 8.8" - 225 mm 10.6" - 269.24 mm 20×1-1/8"
Junior 18.75" - 476.25 mm 13.00" - 330.2 mm 1.8" - 46 mm 73° 72° 4.33" - 110 mm 8.8" - 225 mm 10.6" - 269.24 mm 20×1-1/8"
Expert 19.75" - 501.65 mm 13.25" - 336.55mm 1.8" - 46 mm 74° 72° 4.33" - 110 mm 8.8" - 225 mm 11" - 279.4 mm 20×1-3/8"
Pro 20.5" - 520.7 mm 14.25" - 361.95 mm 1.8" - 46 mm 74° 72° 4.7" - 120 mm 9.3" - 238 mm 11" - 279.4 mm 20×1.75"
> See our Complete bike Warranties conditions

All bikes must be originally assembled by an authorized dealer from original date of purchase to comply with Warranty program.
Complete Bikes Frame have a 1 Year MFG Warranty for defects. Parts have a 6 month MFG Warranty for defects. Strpped bolts, loose bolts causing improper tolerances, and items damaged due to improper riding and crashing are not covered and void any warranty.

Product Details

CHCBRSJUNGH

Data sheet

FRAME
Junior 18.75" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals
FORK
Full Cr-mo, 1" Steer Tube
HANDLEBAR
Cr-mo 4.25" Rise, Diameter 22.2mm, 22.75" Wide, 8° Back Sweep & 2° Up Sweep
GRIPS
130mm Soft Single Ply Without Flange
STEM
Top Load, 1" Steer Tube, Diameter 22.2mm, Length 45mm, 6061 T6 Alloy
HEADSET
Integrated IS 42/42 Reductor 1", Sealed Bearing
CRANKS
3 Pieces Crank 145mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts
BOTTOM BRACKET
Euro Square 118mm Sealed Bearing
CHAINRING
38 Tooth 5 Bolt 110mm 1/2"x3/32" 3mm Steel Ring
CHAIN
KMC Z6 1/2"x3/32"
PEDALS
Platform Nylon 9/16"
RATIO GEAR
36x16
SADDLE
Mini Combo Alloy Post/Nylon Seat
SEAT POST
Mini Combo 25.4mm
SEAT POST CLAMP
28.6mm Alloy 1 Bolt
FRONT RIM
Double Wall Alloy 28H 1-1/8" Presta Valve
REAR RIM
Double Wall Alloy 28H 1-1/8" Presta Valve
FRONT HUB
28H, Double Contact Seals Bearing, 3/8" Axle/Nuts
REAR HUB
28H, Double Contact Seals Bearing, 3/8" Axle/Nuts
COG
Freewheel 16 Tooth 1/2"x3/32"
SPOKES
14 Gauge
NIPPLES
Brass Nipples
FRONT TIRE
Arisun XLR8 1-1/8" Wire Bead
REAR TIRE
Arisun XLR8 1-1/8" Wire Bead
TUBES
20''*1-1/8" Presta Valve
BRAKE LEVER
Junior/Expert 2 Fingers Lever
REAR BRAKE
V-Brake 95mm
WEIGHT
7.7 Kg / 16.98 lb Without Pedal
FRAME SIZE
Junior
RIDER SIZE
4'0" - 4'5.1"
