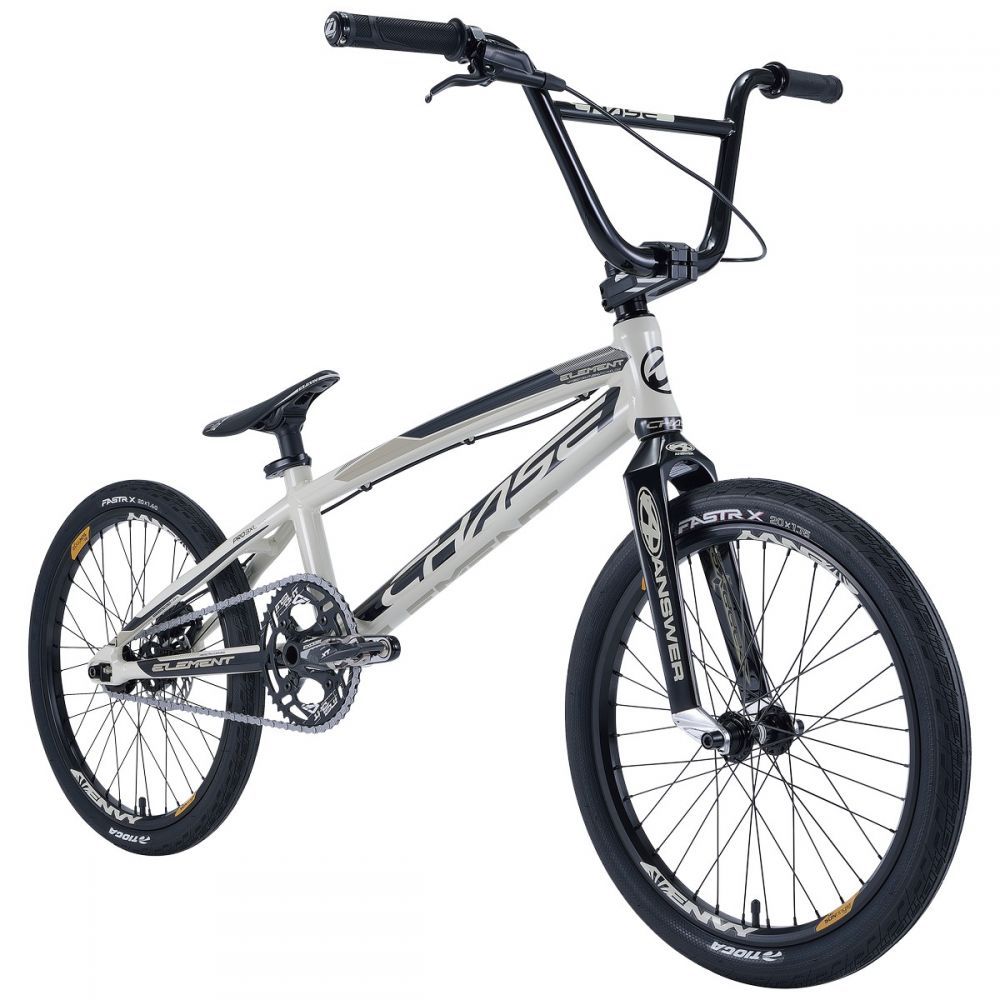

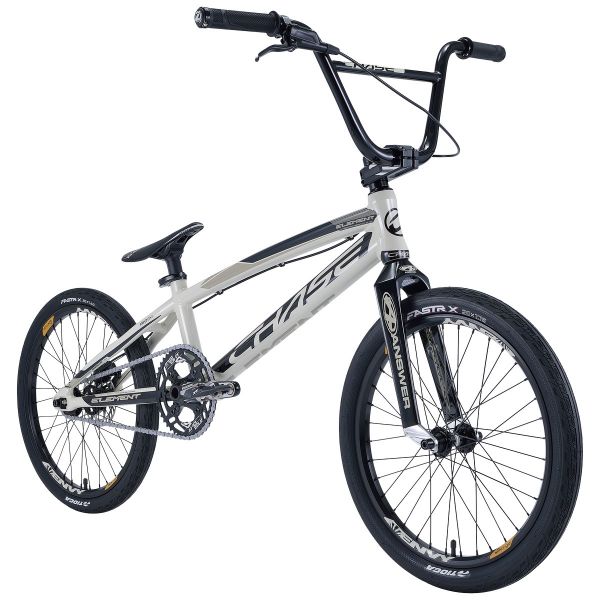

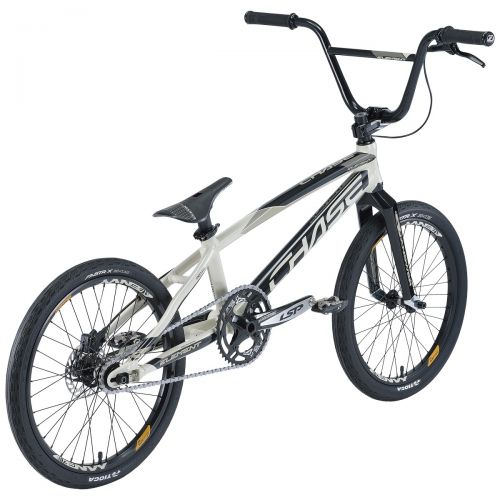

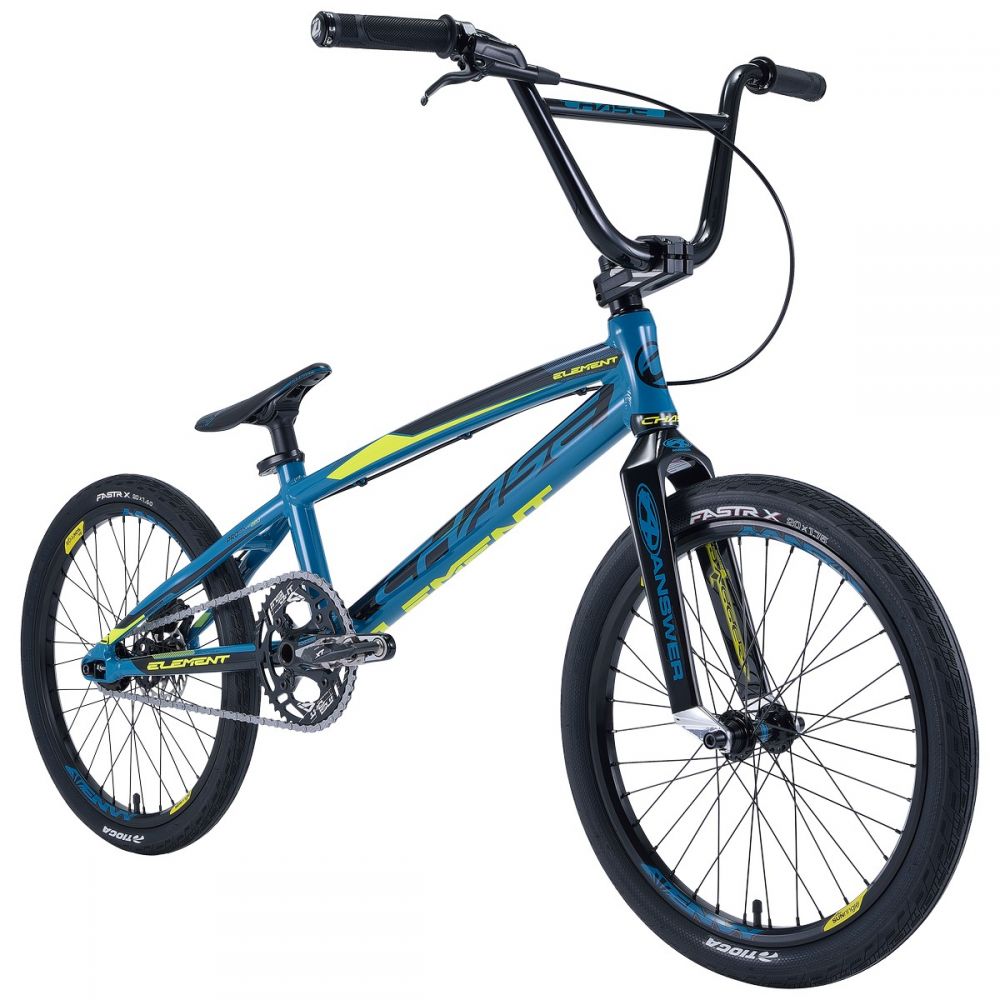

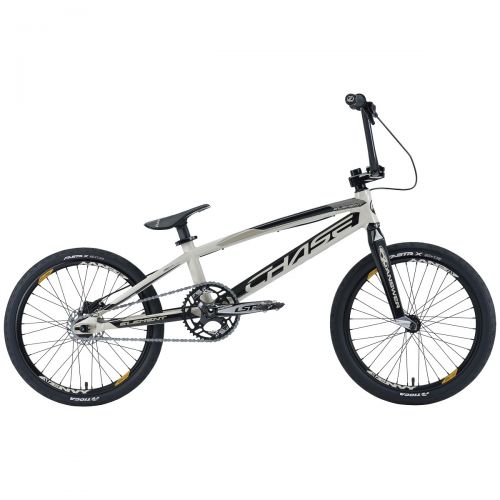

CHASE ELEMENT PRO XXXL 2023

The Chase Element is the complete package for BMX racing, Period. If you looking for the best out of the box BMX Race bike offered today, then you have come to the right spot. Chase BMX has been offering hi-end complete bikes for 10 years, and the Chase Element is the cream of the crop!

The Chase Element complete bike frame uses the same geometry as our Championship winning Chase ACT Carbon Fiber Frame and our and Chase RSP race frames. Our bikes can help you win, if you have what it takes, by giving you an unfair advanced with the technology the Element offers. The 2023 Element frame features Hydroformed & butted tubing, an integrated chain tensioner / disc brake mounting system, and a Press Fit BB86 Bottom Bracket. This is one serious race machine.

The Element is offered in 7 different sizes, Expert, Pro, Pro XL, Pro XXL, Pro XXXL, Pro Cruiser & Pro Cruiser + . The BIO FITS sizing helps give you the exact bike size you need to go out and stomp the competition.

The 2023 Element offers incredible features such as Hydroformed Alloy Disc Specific RaceFrame, ANSWER Dagger carbon fiber fork, TIOGA FastR X tires, 31.8mm handlebar & stem, Hydraulic Disc Brakes, Chase Triple Precise clutch cassette hub, SUN RINGLÉ rims, ELEVN Aero Pivotal seat & post, EXCESS LSP crank, BB-86 Press Fit Bottom Bracket, INSIGHT chainring & grips. With all the parts together with this Hi-End frame, we are able to make the ultimate Pro level & best complete race bike out of the box available today for BMX racing!

RECOMMENDED SIZE: 6'1.2" - 6' 5" / 1m86 - 1m95
WEIGHT: 21.275 LBS / 9.65Kg with pedals

HIGHLIGHT

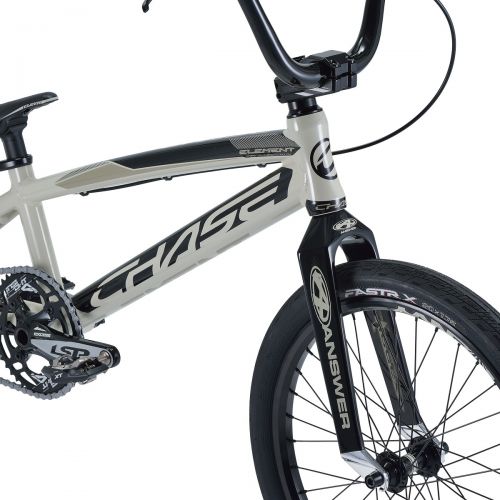

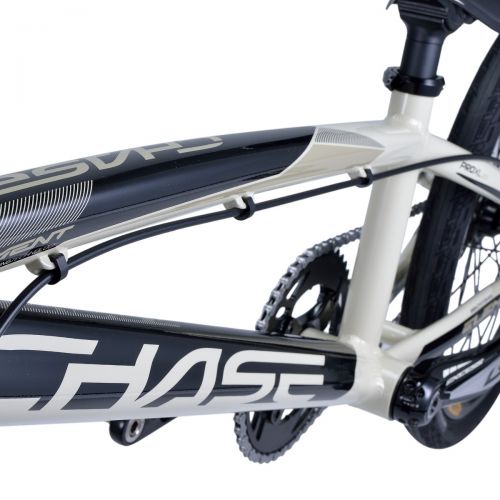

FRAME: CHASE Element Pro XXXL 22″ Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: ANSWER Dagger Carbon Pro 10mm
STEM: CHASE Element 31.8mm 53mm
HANDLEBAR: CHASE Element 31.8mm 8.5″
CHAINRING: INSIGHT 44T 4 Bolts BCD 104mm
CRANKSET: EXCESS LSP 180mm, Press Fit BB86
HUBS: CHASE Element 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
RIMS: SUN RINGLÉ Envy Rims 20×1.75″, 36H, No Brake Surface
TIRES: TIOGA Fastr X 20×1.75″ Front & 20×1.60″ Rear

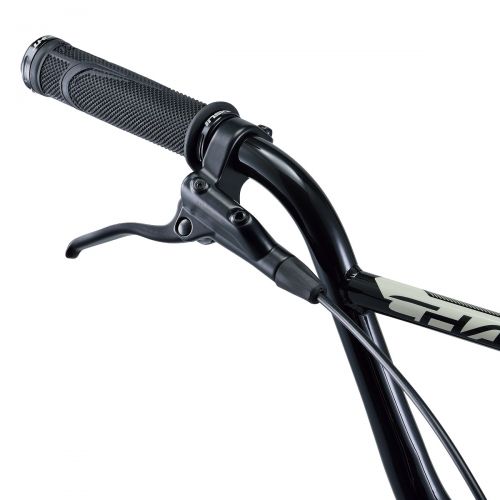

BRAKES: Hydraulic lever and caliper (BH-59, Mineral Oil, Pads Resin SHIMANO/ELEVN B01S), 120mm disc rotor, Lock Disc Adaptor

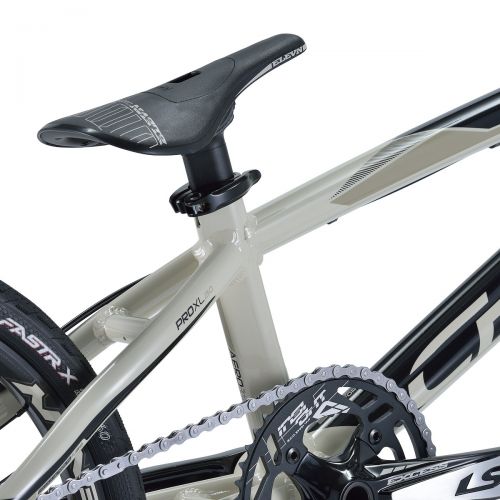

SEAT: CHASE Aero seat post & clamp / ELEVN PC Pivotal seat
Pedals - Nylon Platform - Pictured with Shimano XT Pedals but this was for photo purposes only.
RIDERS SIZES CHART

> See our Complete bike Warranties conditions

$1,399.99

Color

Petrol
Dust

Reference CHCBELPXXXLDU

Quantity

In-Stock

100% secure payments

Availability

In Stock

View Combination List

Payment method available

Manufactured by

Shipped by

Real Stock - In stock items (as listed) ready to ship same day if ordered before 12pm Pacific Time. Inventory update daily. Drop Ship items & Items on Demand are noted for additional shipping times.

Fast Delivery - Items usually are out for Delivery to you in 2-5 business days (USA & In Stock Items). Free shipping (continental US parts orders) over $150.

Secure Payments - Payment by credit card SSL STRIPE or Paypal account. Online payment securely for Visa or Mastercard, Apple Pay, & Amazon Pay methods options also available.

Satisfied or Refund - If the product isn’t what you needed/expected You have 5 days from receipt of your order to return. Please see return policy for all info. Sale items and Clothing are final sales.

More Description

GEOMETRIES :

cadre

FRAME SIZE	TT	CS min	LR	AF	SA	HT	SPL	BBH	WHEELS
Expert	20" - 508 mm	13.5" - 342.9 mm	1.5" - 38.1 mm	73°	70°	4.7" - 120 mm	9.2" - 236 mm	11" - 279.4 mm	20×1-3/8"
Pro	20.5" - 520.7 mm	14.25" - 362 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.5"
Pro XL	21" - 533.4 mm	14.3" - 363.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.75"
Pro XXL	21.5" - 546.1 mm	14.5" - 368.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.75"
Pro XXXL	22.0" - 558.8 mm	14.5" - 368.3 mm	1.5" - 38.1 mm	74°	72,5°	4.7" - 120 mm	9.2" - 236 mm	11.5" - 292.1 mm	20×1.75"
Pro Cruiser	21.5" - 546.1 mm	15.25" - 387.3 mm	1.5" - 38.1 mm	73°	69,5°	4.7" - 120 mm	9.8" - 250 mm	12" - 304.8 mm	24×1.75"
Pro Cruiser +	22.0" - 558.8 mm	15.25" - 387.3 mm	1.5" - 38.1 mm	73°	69,5°	4.7" - 120 mm	9.8" - 250 mm	12" - 304.8 mm	24×1.75"

NOTE: 2022 Chase Element Pictured with Shimano XT Pedals but are for photo purposes only. Bikes come with Nylon Platform Pedals.

IMPORTANT NOTE: The washers supplied with the EXCESS crank set must be fitted between the pedal and the crank. No after-sales service will be accepted if the washers have not been fitted as of the 1st use.

TECHNOLOGIES

Chase Bicycles introduces the Aero seat post tube, seat post, and seat post clamp into BMX racing with our Element bikes and our ACT 1.0 and RSP 3.0 frames. This is to not only to help gain fractions of a second on the track with improved aerodynamics, but the Aero tubes also offers a slightly stiffer feel. We know BMX bikes don’t need to go fully aero testing into a wind tunnel, but when races are won or lost by fractions of a second, every advantage will help..

It doesn’t matter how much you can squat, if your rear hub ins’t worth squat. But with the new Chase Element Triple Precise Rear hub clutch system, all you will have to worry about is how to where to put you trophies instead of if your hub can take all the power you can dish out. The 3 pawls clutch system gives you a direct link to power, while keeping the rear hub light and easy to maintain. With 72 points of engagement, the drag is also minimal, while being secure enough for Champions riders like Connor Fields and Joris Daudet to ride on with confidence.

Chase utilizes the CNC machining process to produce out 3D Modulus Dropout and small parts of the Edge and Element frames. Using the CNC process allows us to design parts that are specifically built to work the best with our proprietary frame tubes, giving us another way to control the overall weight and strength – flex factor on the frames, to give you, the best ride and feel from our complete bikes. Precision machining enhances the beauty and craftsmanship ship of all frames offered from Chase.

Chase Bicycles utilizes tapered tubing to offer you the most durable, yet light weight products, to help you achieve optimum results on the BMX race track. Our tapered items, use multiple thicknesses in the same tube, so the tube can be reinforced where needed with precision to help reduce stress areas where needed and lighten up the areas that don’t require extra materials. In aluminum the result are tube walls that eliminate stress points, boosting strength, reducing weight and improving fatigue life. The advantage is clear : Tapered tubes enhances strength and durability, at less weight.

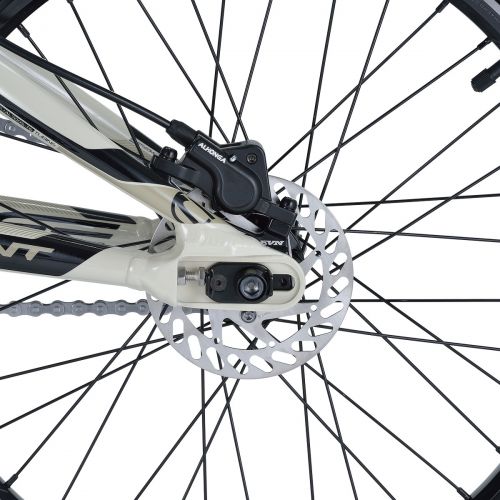

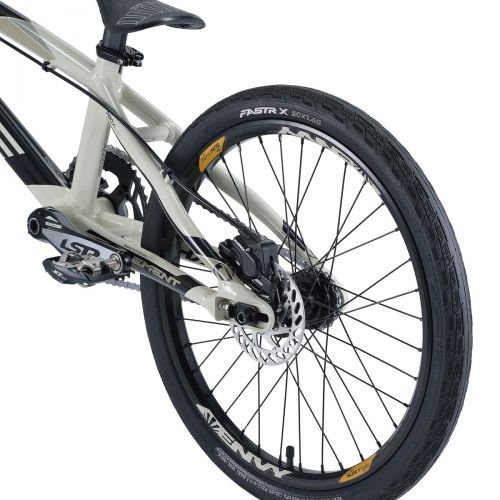

Chase has designed and added the new Enclosed Rear dropout on the Element frame was developed to add strength to the frame for usage of the Disc Brake mount, as well as the easy of having an integrated chain tensioner system built into the frame. We use this same technology on our flagship BMX racing frame, the Chase ACT 1.0 Carbon Fiber frame.

Born from some of the best alloys for building BMX race bikes, our special 6061-T6 SpeedLite alloy is the perfect blend for our Hydro-forming process, giving the Element frames the core strength needed to produce unmatched speed on the track, while keeping the overall weight of the frame down to a minimum.

Hydroformed tubes have two main advantages. First, the narrow axis is a flatter surface, which means more surface area to carry the load, so it is stiffer & stronger across the minor axis. Secondly, the deeper axis is stiffer since the stiffness varies to the cube of the diameter, stronger to the square. When using an oval shaped tube on a typical BMX frame it helps reduce flex but only in one direction, but on the Chase frames, the tubes are oval in both directions in the main flex areas and these tubes help reduce flex in both main directions.

Chase utilizes the triple butting on our line of Element bikes. A triple-butted tube means it has three different wall thicknesses along its length. Chase uses this technology to reduce the amount of material used when building the Element frame, decreasing its weight by 15% compared to last years frame tubes used to construct the frame. Lighter where it can be and stiffer where it needs to be means no excess weight on the bike that gives you an advantage with the Element frame and against the completion.

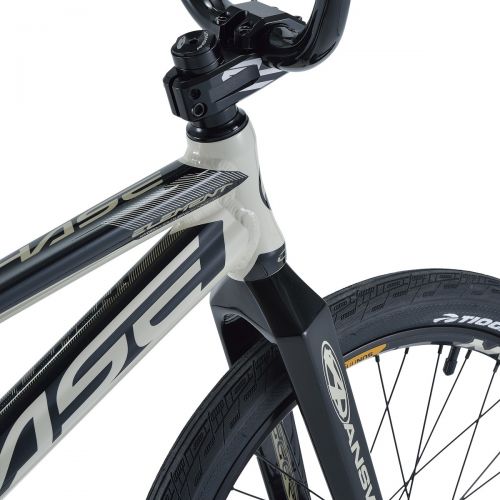

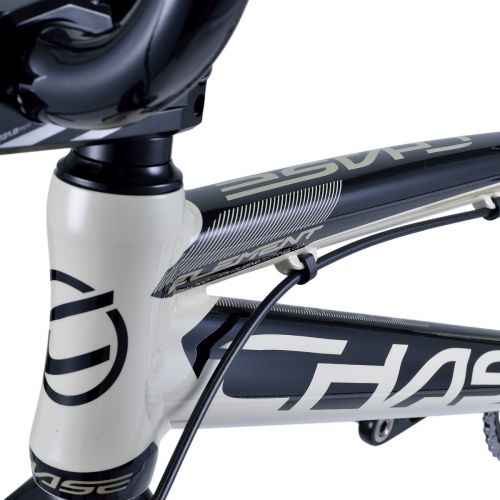

Chase incorperates the Integrated headset system on all of our frames. Simply put, It is a bicycle frame, fork and bearing system designed to eliminate the need for a headset cup. To integrate means to combine and hopefully to simplify. What has been integrated by the integrated headset? The bearings now rest inside the frame instead of inside pressed-in cups, making it easier for headset installation, helping create less maintenance on your race bike, all while making the front end stiffer and the overall bike lighter.

Early Chase Element bikes, RSP 4.0 & ACT 1.0 Frames both use a Press Fit style Bottom Bracket tube. Press Fit BB are a simple and easy way to install a Bottom Bracket, where the Bottom Bracket you supply for your frame has the Bearings in cups and simply press into the frame, eliminating the chance of damaging BB threads, with the traditional Euro BB. The BB is usually lighter and easier to install and remove as well.

SPECIFICATIONS :

FRAME	CHASE Element Pro XXXL 22.0″ Top Tube, 7005 T6 Alloy, Integrated 1-1/8″ Head Tube , Enclosed rear dropouts and Chain tensioner system
FORK	ANSWER Dagger Carbon Pro, Alloy Drop Out 3/8″ Axle, 1-1/8″ Alloy Steer Tube, Alloy Top Cap
HEADSET	CHASE Integrated Sealed Bearing
HANDLEBAR	CHASE Element 31.8mm, 8.5″ Rise, 28.5″ Wide, 10° Back Sweep, 2° Up Sweep
GRIPS	INSIGHT C.O.G.S 145mm, Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	CHASE Element 31.8mm, 53mm, 6061 T6 Alloy CNC Laser Etched Logo
BB	Press Fit 68/73mm Cartridge Bearings

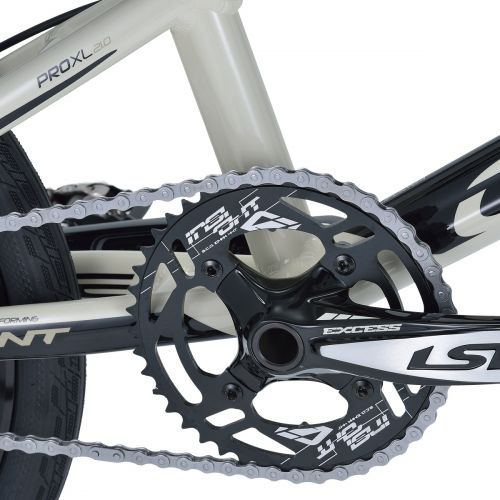

CHAINRING	INSIGHT 44 Tooth 4 Bolts 104mm 1/2″x3/32″ 5mm Alloy Ring
CRANK	EXCESS LSP 2 Piece Crank 180mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts
PEDAL	Nylon Platform Pedal 9/16″
CHAIN	KMC Z1 narrow 1/2″x3/32″
COG	16 Tooth
FRONT HUB	CHASE Element, 3/8″ Axle, 36H, Sealed Bearing
REAR HUB	CHASE Element ISO, 3/8″ Axle, 36H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES	14 Gauge 186mm Front / 181mm Rear
NIPPLES	Brass 14Gx5/8″
RIMS	SUN RINGLÉ Envy 36H 20×1.75″ No Brake Surface Schrader Valve
FRONT TIRE	TIOGA Fastr X 20×1.75″
REAR TIRE	TIOGA Fastr X 20×1.60″
TUBES	20×1.50/1.75″ Schrader valve
BRAKES	Hydraulic lever and caliper (BH-59, Mineral Oil, Pads Resin SHIMANO/ELEVN B01S), 120mm disc rotor, Lock Disc Adaptor
SADDLE	ELEVN PC Pivotal
SEAT POST	CHASE Aero Pivotal 27.2x260mm Alloy
SEAT CLAMP	CHASE Aero QR Alloy 31.8mm

Product Details

Reference CHCBELPXXXLDU

Data sheet

WEIGHT: 21.275 LBS / 9.65 KG WITH PEDALS
FRAME SIZE: Pro XXXL
RIDER SIZE: 6'1.2" - 6'5"

Reviews

Post a comment after receiving your order and receive a 5% discount coupon on your next order.

Grade

Dustin S
02/07/2023

Great bike

Great bike overall excellent stiffness.
Only area I’ve found lacking is the bottom bracket as it comes with plastic cups prone to flex which has sent me down a rabbit hole chasing creaks due to the nature of pressfit bottom brackets. Easy to assemble out of the box
