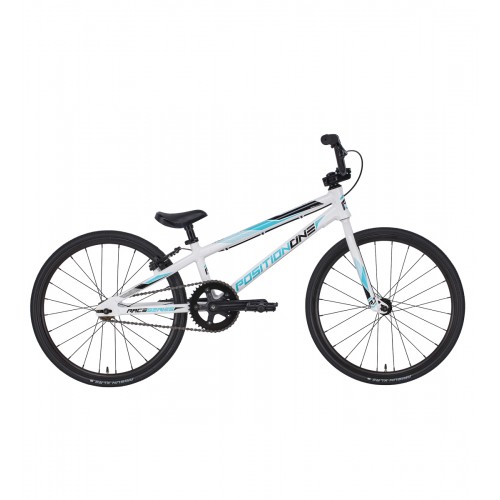

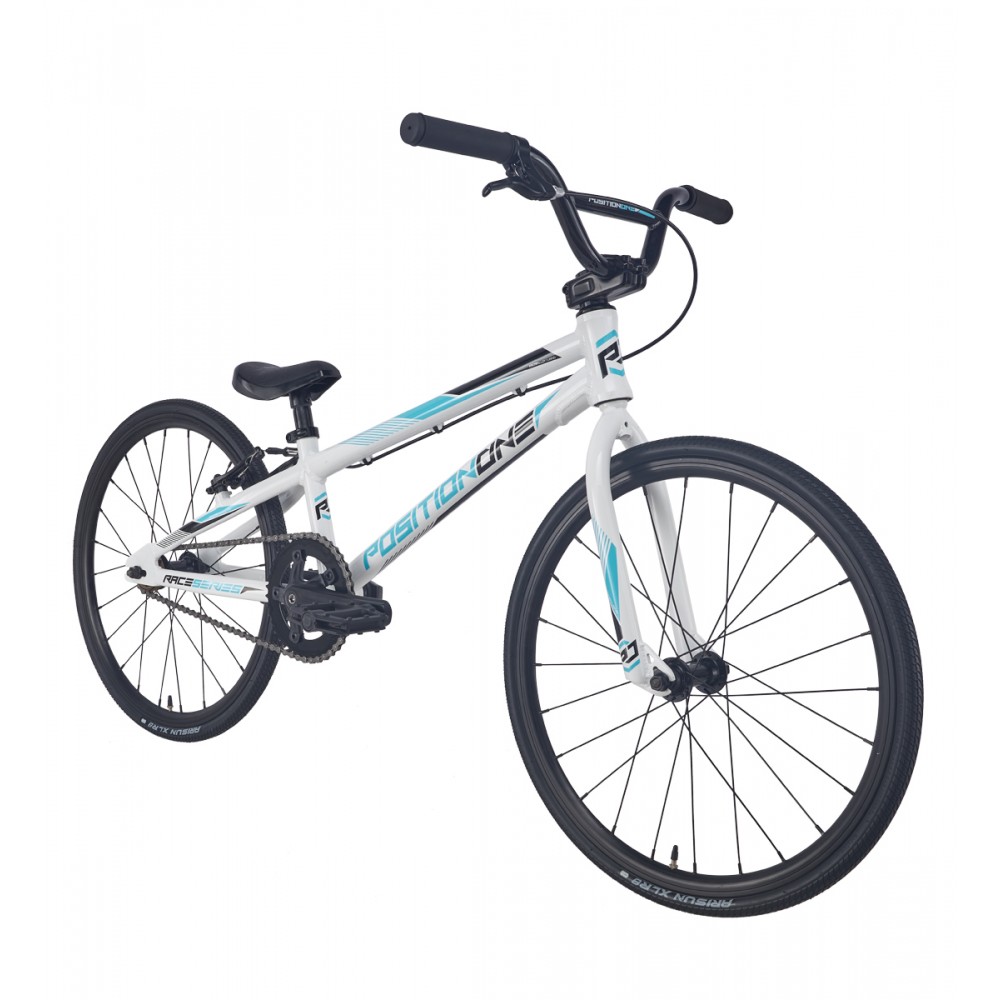

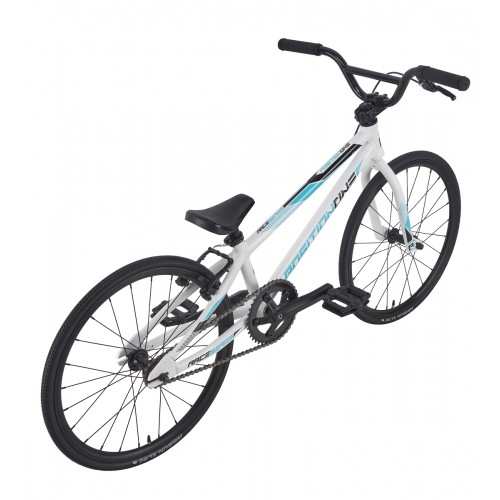

POSITION ONE JUNIOR

POSITION ONE Bikes offers you one of the best BMX Racing Bikes for your first ride and race on track and help get you on the way to becoming a future BMX Champion.

We offer 5 sizes in the Position One BMX Racing line. We start by using the winning race proven geometry from our championship winning brand, Chase BMX, to create a truly certified BMX racing bike. We then load the POSITION ONE bikes with real BMX racing parts, giving you not only a real race bike, but the best value for your money in a entry-level race bike, from a company that actually races.All of our POSITION ONE racing bikes feature a 6061-t6 alloy frame with integrated head tubes, race perfect geometry, 100% chromoly bars and forks, sealed hubs, double walled rims, and raced tuned parts from great companies like KMC, VEE RUBBER, and ARISUN.

  • Frame Junior 19" Top Tube
  • Fork Full Cr-mo Fork
  • Head Set Integrated Sealed Bearing
  • Chain Ring 5 Bolts 40 Tooth
  • Crank Alloy 155mm
  • Chain KMC Z33
  • Rims Double Wall 24H 1-1/8"
  • Tires Arisun XLR8 1-1/8"
  • Seat & Seat Post Mini Combo 25.4mm

RECOMMENDED SIZE: 4' - 4'5" / 1m22 - 1m35
WEIGHT: 7.7 KG / 16.98 LB without pedals

> See our Complete bike Warranties conditions

All bikes must be originally assembled by an authorized dealer from original date of purchase to comply with Warranty program.
Complete Bikes Frame have a 1 Year MFG Warranty for defects. Parts have a 6 month MFG Warranty for defects. Strpped bolts, loose bolts causing improper tolerances, and items damaged due to improper riding and crashing are not covered and void any warranty.

$469.99
Color
P1CBRCJUNWHLBBK
Quantity
Last items in stock

Availability
In Stock

Payment method available

Manufactured by

POSITION ONE

Shipped by

Shipped by BMX RACING GROUP

More Description

GEOMETRIES

cadre

FRAME SIZETTCS minLRAFSAHTSPLBBHWHEELS
Micro 16.15 - 410.21 mm 10.85" - 275.6 mm 1.8" - 46 mm 71° 69° 4" - 100 mm 8" - 203.5 mm 9.10" - 231.14 mm 18×1"
Mini 17.25" - 438.15 mm 12.5" - 317.5 mm 1.8" - 46 mm 72° 70° 4" - 100 mm 8.65" - 219.71 mm 10.6" - 269.24 mm 20×1-1/8"
Junior 19" - 482.6 mm 13" - 330.2 mm 1.8" - 46 mm 73° 72° 4" - 100 mm 8.75" - 222.25 mm 10.6" - 269.24 mm 20×1-1/8"
Expert 19.5" - 495.3 mm 13.25" - 336.55mm 1.8" - 46 mm 74° 72° 4" - 100 mm 8.75" - 222.25 mm 11" - 279.4 mm 20×1-3/8"
Pro 20.5" - 520.7 mm 14.25" - 361.95 mm 1.8" - 46 mm 74° 72° 4.33" - 110 mm 9.25" - 234.95 mm 11" - 279.4 mm 20×1.75"

Product Details

P1CBRCJUNWHLBBK

Data sheet

FRAME
Junior 19" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1", Water Decals
FORK
Full Cr-mo, 1" Steer Tube
HANDLEBAR
4.25" Rise, 22.75" Wide, 8° Back Sweep & 2° Up Sweep
GRIPS
130mm Soft Single Ply Without Flange
STEM
Top Load 40mm 6061 T6 Alloy
HEADSET
Integrated Sealed Bearing
CRANKS
3 Piece Crank 155mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts
BOTTOM BRACKET
113mm Sealed Bearing Square BB
CHAINRING
40 Tooth 5 Bolt 110mm 1/2"x3/32" 3mm Steel Ring
CHAIN
KMC Z33 1/2"x3/32"
PEDALS
Platform PP 9/16"
RATIO GEAR
40x16
SADDLE
Mini Combo
SEAT POST
Mini Combo 25.4mm
SEAT POST CLAMP
Alloy 1 Bolt
FRONT RIM
Double Wall 24H 20"x1-1/8" Presta Valve
REAR RIM
Double Wall 24H 20"x1-1/8" Presta Valve
FRONT HUB
24H, Double Contact Seals Bearing, 3/8" Axle/Nuts
REAR HUB
24H, Double Contact Seals Bearing, 3/8" Axle/Nuts, Freewheel
COG
16 Tooth
SPOKES
14 Gauge
NIPPLES
Brass Nipples
FRONT TIRE
Arisun XLR8 20x1-1/8"
REAR TIRE
Arisun XLR8 20x1-1/8"
TUBES
20x1-1/8" Presta Valve
BRAKE LEVER
Alloy Junior/Expert
REAR BRAKE
Alloy 95mm
WEIGHT
7.7 KG / 16.98 LB without pedals
FRAME SIZE
Junior
RIDER SIZE
4'0" - 4'5.1"
